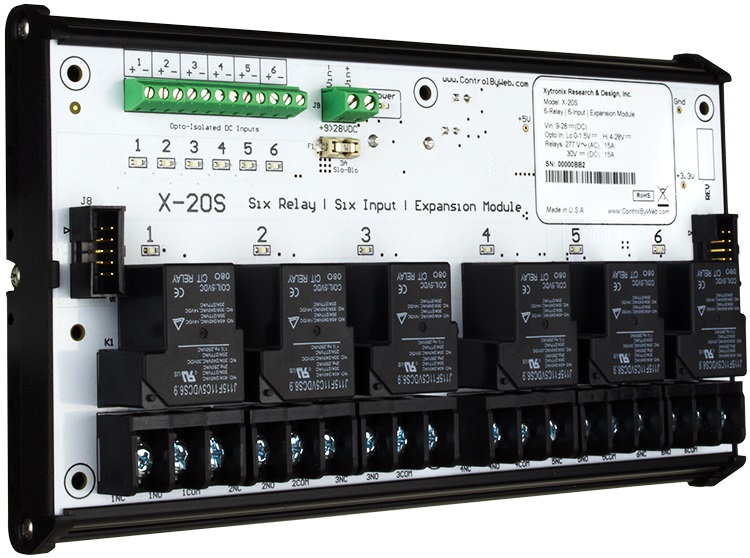

X-20S - 6-Channel High Power Relay, 6 Digital Input Expansion Module

X-20S - 6-Channel High Power Relay, 6 Digital Input Expansion Module
Zoom  Zoom

Our Price:  £199.00(£238.80 Inc. VAT)

Digital Inputs:  6
Digital Outputs:  6

Availability:

Special order, 7-10 days

Special order, 7-10 days

The X-20s™ expansion module is used with the X-600M controller. The X-20s has six, high-current relays, each with Form-C contacts (SPDT) and six, optically-isolated digital inputs. A screw terminal strip provides high-current connections to the relays. . One or more X-19s expansion modules can be connected to an X-600M controller with a ribbon cable which provides both power and communications.


  • 6 x  SPDT relays (277VAC, 30VDC, 30A) independently controlled
  • Relay Functions:
    • On
    • Off
    • Pulse
  • 6 optically-isolated digital inputs
  • Contact closure or Logic 1 voltage: 4-28VDC
  • Inputs can also act at 32-bit counters
  • Max Count Rate: 200 Hz
  • Power Supply: 9-28 VDC (24V recommended)

The X-20s™ expansion module is used with the X-600M controller. The X-20s has six, high-current relays, each with Form-C contacts (SPDT) and six, optically-isolated digital inputs. A screw terminal strip provides high-current connections to the relays.

The X-20s is suitable for use with controlling relatively heavy loads such as motors, solenoid valves, and lights. Switches can be connected to the X-20s' digital inputs to locally control these loads. The digital inputs can also be used for other monitoring applications such as limit switches, security sensors, or light switches.

Since the X-20s functions as a slave device to the X-600M, the advanced features of the X-600M can be utilized with this module. For example scheduling, remote relay control, logging, counting, email alerts based upon single input state change or multiple input state changes, and many other features are available. Attach multiple X-20s modules or a combination of expansion modules to the X-600M for an I/O combination that is tailored to your specific needs.


Downloads

X-20S User Manual >>
