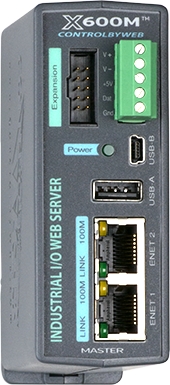

X600M - Web-Enabled I/O Controller

X600M - Web-Enabled I/O Controller
  Zoom
X600M - Web-Enabled I/O ControllerX600M - Web-Enabled I/O ControllerX600M - Web-Enabled I/O ControllerX600M - Web-Enabled I/O Controller
Our Price:  £430.00(£516.00 Inc. VAT)
+

Availability:



1 in stock, immediate despatch

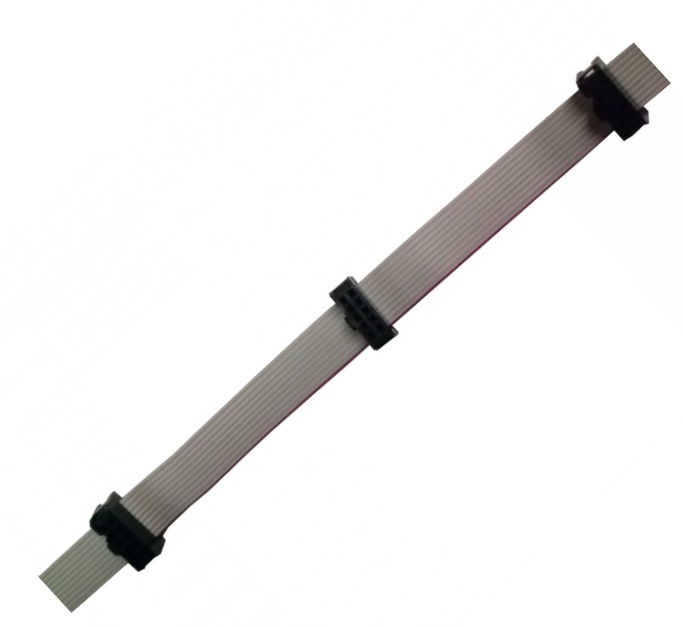

IDC-RIBBON Expansion Ribbon CableIDC-RIBBON Expansion Ribbon Cable

The X-600M is a web-enabled I/O controller that performs logic control, monitoring, email notifications, scheduling, logging and data graphing functions. Add I/O by connecting expansion modules for a solution that is tailored to your specific application. Expansion modules include relays, digital inputs, analogue inputs, thermocouples and more. This series has many powerful features and will be an ideal solution for many applications.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Powerful built-in web server
  • Easily configurable web pages
  • Logging & automatic graphing of log files
  • Built-In Ethernet switch with two Etherent connections
  • Expansion bus - Direct connection with up to 64 modules
  • Communicates with all ControlByWeb modules such as, WebRelay, WebRelay-Quad, Analog Module, X-300, etc.
  • Up to 1,024 I/O points
  • Supports USB WiFi adapaters & USB flash drives
  • Built-in 1-wire bus for temp/humidity sensors
  • Send custom email alerts using encrypted email servers (Gmail, Yahoo, etc.)
  • Create logic scripts or full programs using Lua
  • Advanced, full-calender scheduling
  • Protocols supported: HTTP, HTTPS, SSL, SMTP, Modbus/TCP, Remote Services™ server and client, & more.
  • Email alerts based on user-defined conditions
  • Static or DHCP IP address configuration
  • XML, Modbus/TCP, & SNMP interface options
  • Field updatable
  • Removable 14-Terminal connector
  • Rugged DIN-Rail/wall-mountable enclosure

The X-600 Modular Series is the ultimate drop-in solution for monitoring and control. Start with the X-600M™ master controller and add I/O by connecting expansion modules for a solution that is tailored to your specific application. Expansion modules include relays, digital inputs, analog inputs, thermocouples and more. This series has many powerful features and will be an ideal solution for many applications

The X-600M is a web-enabled I/O controller that performs control, logic, and monitoring functions similar to that of a Programmable Logic Controller (PLC). However, unlike a PLC, the X-600M is designed for web based applications from the ground up. The X-600M can be setup, controlled, and monitored using its built-in web server and a standard web browser. The setup web pages are intuitive and easy to use and do not require special programming skills. No add-on software is required.

The X-600M functions as a powerful master controller for other ControlByWeb™ modules. Its ribbon-cable expansion bus connector allows for up to 64 expansion modules to be connected directly to the X-600M*. It can also control any of our other stand-alone ControlByWeb devices over an Ethernet network - Up to 128 devices!

Many powerful features are included in this new series; such as customizable Email notifications, scheduling, logging and graphing of logged data, custom Lua scripts, and much more.



CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.


Downloads

X-600M Users Manual >>

X-600M Quick-Start Guide >>

X-600 Modular Series Brochure >>

Lua Users Manual - Abridged for X-600 Modular Series >>
