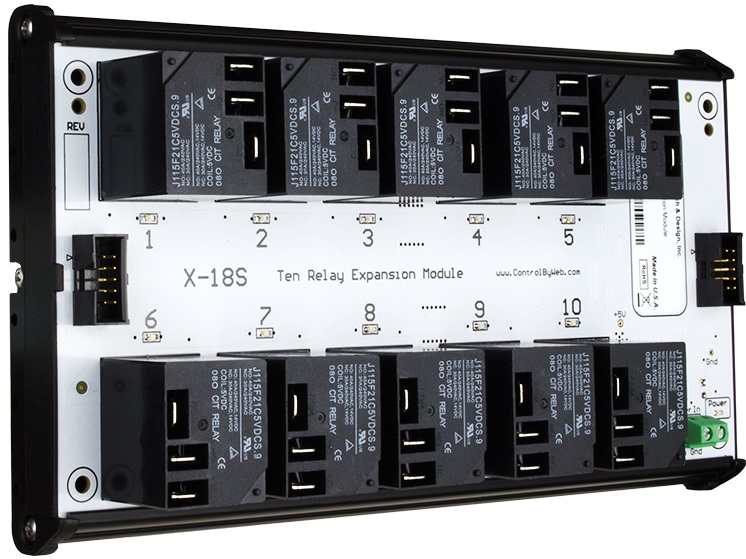

X-18S - 10-Channel High Power Relay Expansion Module

X-18S - 10-Channel High Power Relay Expansion Module
Zoom  Zoom

Our Price:  £199.00(£238.80 Inc. VAT)

Digital Outputs:  10

Availability:

Special order, 7-10 days

Special order, 7-10 days

The X-18s™ expansion module is used with the X-600M controller. The X-18s has ten, high-current relays, each with Form-C contacts (SPDT). Wiring connections are made directly to the relays using 1/4" tab terminals located on top of the relays. One or more X-18s expansion modules can be connected to an X-600M controller with a ribbon cable which provides both power and communications.


  • 10 x  SPDT relays (277VAC, 30VDC, 30A) independently controlled
  • Relay Functions:
    • On
    • Off
    • Pulse
  • Power Supply: 9-28 VDC (24V recommended)

The X-18s™ expansion module is used with the X-600M controller. The X-18s has ten, high-current relays, each with Form-C contacts (SPDT). Wiring connections are made directly to the relays using 1/4" tab terminals located on top of the relays.

This module is suitable for use with loads which require line voltages and high currents such as pumps, motors, lights and heaters. Attach multiple X-18s modules or a combination of expansion modules to the X-600M for an I/O combination that is tailored to your specific needs.


Downloads

X-18S User Manual >>
