X-12S - 8-Channel Relay Expansion Module

X-12S - 8-Channel Relay Expansion Module
Zoom  Zoom
Our Price:  £109.00(£130.80 Inc. VAT)

Availability:

1 in stock, immediate despatch

1 in stock, immediate despatch

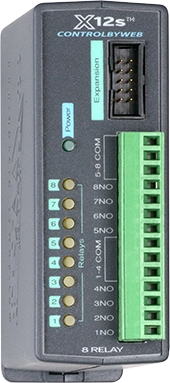

The X-12s 8-relay expansion module is used with the X-600M™ controller. The X-600M is a web-enabled I/O controller that performs logic control, monitoring, email notifications, scheduling, logging and data graphing functions. Add I/O by connecting expansion modules for a solution that is tailored to your specific application

The X-12s has eight relays, each with Form-A contacts (SPST) with the commons tied together in two groups.


  • Eight SPST relays (125VAC, 30VDC @ 2.5A) independently controlled
  • Removable connector
  • Eight relay LEDs
  • Removable terminal connector
  • Powered through expansion bus - no separate power supply connections are required

 The X-12s™ Eight Relay expansion module is used with the X-600M™ controller. The X-12s has eight relays, each with Form-A contacts (SPST) with the commons tied together in two groups. A removable terminal connector provides connections to the relays.

One or more X-12s expansion modules can be connected to an X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules.

The X-600M with its expansion modules such as the X-12s provide an easy, flexible and reliable way to monitor and control systems and devices over a network. The X-12s is suitable for use with moderate loads such as solenoid valves, alarms and indicator lights.


Downloads

X-12S User Manual >>
