A-1219 Wifi Modbus TCP - 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, Thermistor

NEW
A-1219 Wifi Modbus TCP - 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, Thermistor
  Zoom
 A-1219 Wifi Modbus TCP - 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, ThermistorA-1219 Wifi Modbus TCP - 8-Ch Analogue Input Unit, 4-20mA, Thermocouples, Thermistor
Our Price:  £99.00(£118.80 Inc. VAT)
+
Add USB Programming Lead:

Analogue Inputs:  8
Digital Inputs:  4

Availability:



1 in stock, immediate despatch

The  A-1219 is a Wifi Remote Modbus TCP module providing 8 Universal Analogue Inputs - 4-20mA, thermocouples and thermistors and 4 digital inputs. It uses optical isolators to prevent ground loop effects and limits damages from power surges. The  A-1219 has a Wifi port supporting Modbus/TCP communications as well as a RS485 port for Modbus RTU. A USB comm port is also available for Modbus communications and configuration.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 8 isolated, differential analogue inputs
    • Current: 0-20mA, 4-20mA
    • Thermocouple: J,K,T,E,R,S,B
    • Thermistor: 10k - 1k
  • ADC Resolution: 16-bit
  • Input Impedance:
    • Current: 100 Ω
    • Voltage : 10 MΩ
  • Input Accuracy: ±0.1%
  • Sampling Rate: 10 sample/second (total)
  • 4 Digital Inputs
    • status low: <1VDC,  status high: 5-30VDC
  • CMR @ 50/60 Hz: 120 dB
  • Wifi - Standard 2.4GHz IEEE 802.11 b/g
  • Modes:
    • AP Access Point - connect directly
    • Remote - connect via Wifi network
  • Supplied with removable antenna
  • RS-485 Interface
  • USB Interface for configuration and test
  • Protocol - Modbus/TCP, Modbus RTU
  • Operating Temperature: - 20 to 75º C
  • Power: 10 to 30VDC, 24VAC
  • Panel or DIN Rail mount - stackable for high density applications
  • Dimensions - 72mm x 118mm x 39mm
Included Software

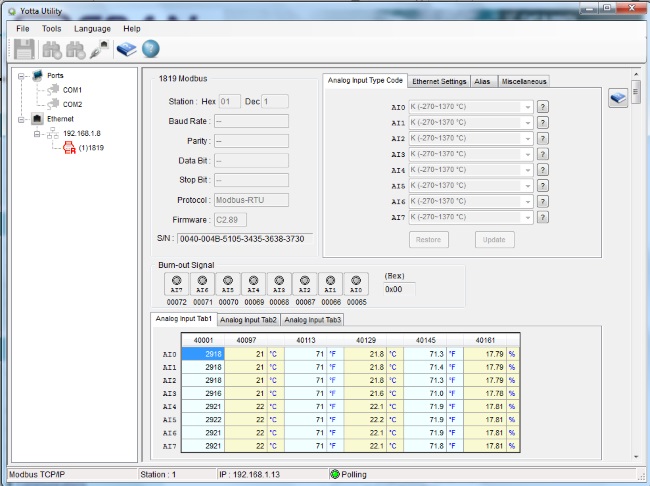

The unit is configured using the free Utility Software. This can be used to set the units' IP address and to set the input ranges and monitor inputs.

Optional Software

RealView

RealView is a Windows data logging and chart recorder application, which records and plots measured values from analogue hardware devices in real-time. Several curves can be plotted into a single chart. Several charts can be arranged on one or more pages if necessary. Plot options like pen width or pen colour can be altered to suit. Chart screen shots can be captured, charts printed with annotations and raw data can be exported to Excel.

More Information >>



Profilab

ProfiLab Expert is a low cost graphical programming software package for data acquisition and control applications. No programing experience is needed, programs are written by connecting function blocks together with wires. Professional user panels can be designed with custom controls, and the whole program can be compiled into a stand-alone executable file, with no run-time penalties.

More Information >>



DAQFactory

DAQFactory is a low cost data acquisition and control software for SCADA, Factory Automation, HMI and Test and Measurement applications. DAQFactory provides all the tools needed to acquire data, log it, share it on a network, display it on the screen, graph it, analyse it, and automate your project. DAQFactory can communicate with just about any serial or Ethernet device using Modbus RTU, ASCII or Modbus/ TCP. It also supports a wide variety of DAQ devices including LabJack USB devices and many other DAQ cards.

More Information >>




Downloads

User Manual >>

Quick Start Guide >>

Utility Software >>

USB Driver >>
