NANO_OUT - Ethernet Relay Unit with Web, Modbus TCP, SNMP

NANO_OUT - Ethernet Relay Unit with Web, Modbus TCP, SNMP
Our Price:  £69.00(£82.80 Inc. VAT)

Digital Outputs:  1



1 in stock, immediate despatch

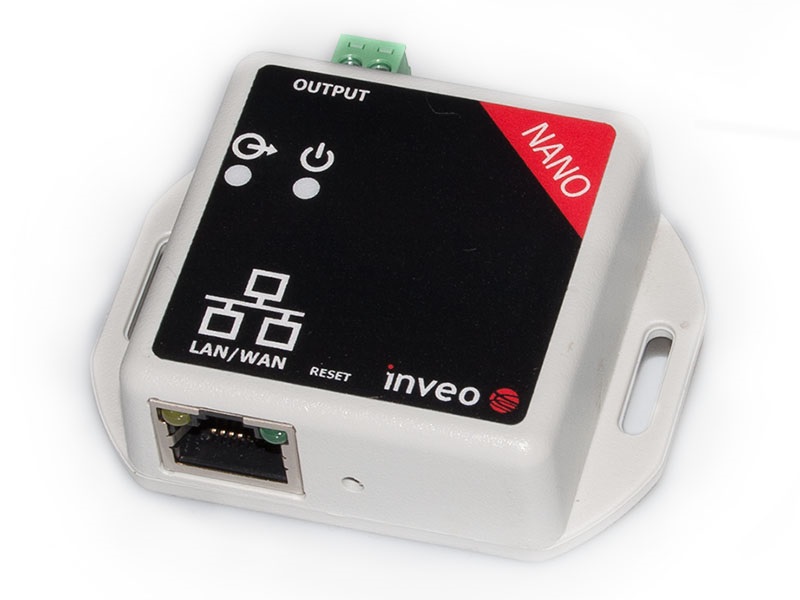

The NANO_OUT is a Ethernet Web controlled Relay unit with a single mains rated relay. Users can control, the relay from any web enabled device or using the Android App. The unit also supports SNMP for IT users and Modbus/TCP for industrial users. Can be linked with a NANO_IN to transmit a digital signal across a LAN.

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 1 x Relay Output
    • Maximum working voltage: 250V AC, 30V DC,
    • Maximum current: 4A
    • Modes of operation: Monostable, Bistable, One pulse, Shutter – two relays are used to control shutter motor
  • Web Interface
  • Communications Protocols;
    • SNMP - for IT alarm trap applications
    • Modbus/TCP - for industrial applications
    • HTTP
  • Android App
  • Dimensions: 90mm x 51mm x 68mm
  • Power supply voltage: 10-24VDC or AC
  • Power consumption: 1.5 – 4.2W
  • Operating Temperature: -10°C to 60°C
  • CE compliant

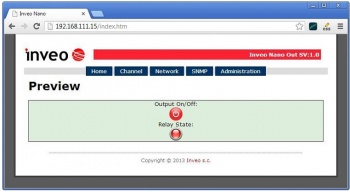

Web Interface

The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.

Direct connection between modules (bridge connection)

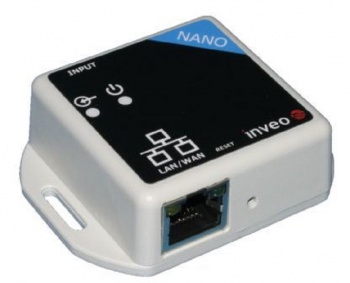

The NANO_OUT can be configured in a bridge connection where the digital input on a NANO_IN  control the relay output.

Android App

It is possible to control multiple LanTick Pro devices from the dedicated android App
