NANO_IN - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP

NEW
NANO_IN - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP
  Zoom
Our Price:  £69.00(£82.80 Inc. VAT)
+
Add UK 12V DC Mains PSU:
Add EU 12V DC Mains PSU:

Digital Inputs:  1
Pulse Counter Inputs:  1

Availability:



1 in stock, immediate despatch

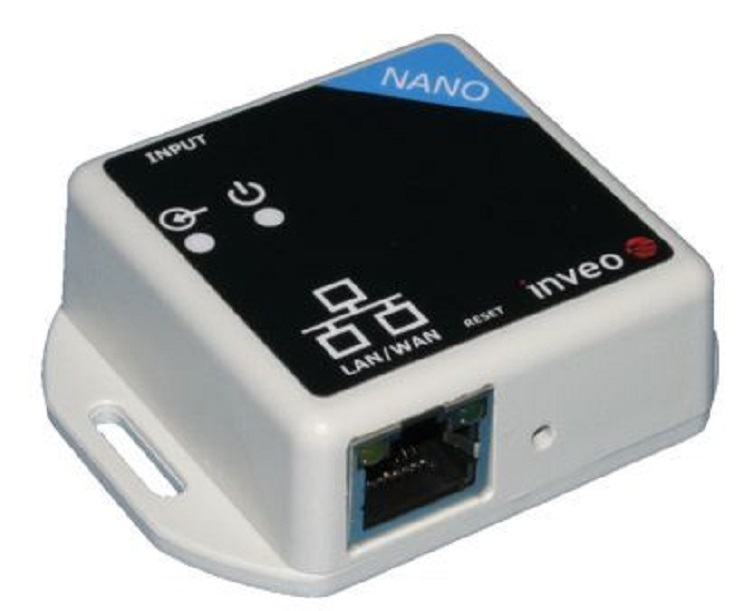

The NANO_IN is a Ethernet Web controlled digital input unit with a single opto-isolated input that can also count pulses. Users can monitor the input from any web enabled device or using the Android App. The unit also supports SNMP for IT users and Modbus/TCP for industrial users.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 1 x opto-isolated digital input
  • Volt-free contact closure or voltage input;
    • logic level 1: 10~24V
  • Input also operates as 100Hz pulse counter
  • Isolation Voltage: 2000Vdc
  • Web Interface
  • Communications Protocols;
    • SNMP - for IT alarm trap applications
    • Modbus/TCP - for industrial applications
    • HTTP
  • Android App
  • Dimensions: 66mm x 50mm x 20mm
  • Power supply:
    • 10-24VDC via RJ45 port.
    • DC power Injector adaptor included
    • Can be used with POE routers with 24V max output
  • Operating Temperature: -10°C to 60°C
  • CE compliant

Web Interface

The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.

Direct connection between modules (bridge connection)

The NANO_IN can be configured in a bridge connection where the digital signal is reproduced on a NANO_OUT output Relay.

LanTick Logger Application

LanTick Data Logger application which enables monitoring, stored in a CSV format and send via e-mail inputs and outputs states.

Android App

It is possible to control multiple LanTick Pro devices from the dedicated android App




Downloads

User Manual >>

Search Utility >>

LanTick Logger Application >>
