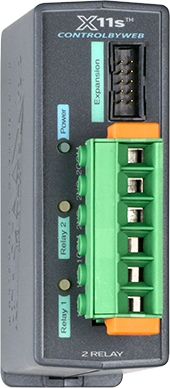

X-11S - High-Power Relay Expansion Module

X-11S - High-Power Relay Expansion Module
  Zoom
Our Price:  £144.00(£172.80 Inc. VAT)
+

Availability:



Incoming, 7-10 days

The X-11s 2-relay expansion module is used with the X-600M™ controller. The X-600M is a web-enabled I/O controller that performs logic control, monitoring, email notifications, scheduling, logging and data graphing functions. Add I/O by connecting expansion modules for a solution that is tailored to your specific application

The X-11s has two high-current relays. Both relays have Form-C contacts (SPDT). A rugged, high-current connector provides connections to the relays.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Two, large SPDT relays (277VAC and 20 Amps) independently controlled
  • Removable locking connector supports 24AWG to 10AWG wire
  • LED indicators for power and relay status
  • Removable terminal connector
  • Powered through expansion bus - no separate power supply connections are required

The X-11s 2-relay expansion module is used with the X-600M controller. The X-11s has two high-current relays. Both relays have Form-C contacts (SPDT). A rugged, high-current connector provides connections to the relays.

One or more X-11s expansion modules can be connected to an X-600M control module with a ribbon cable. The ribbon cable provides both power and communications to this and other expansion modules.

The X-600M with its expansion modules such as the X-11s provides an easy, flexible, and reliable way to monitor and control systems and devices over a network. It is suitable for use with loads which require line voltages and high currents such as pumps, motors, lights and heaters.



Downloads

X-11S User Manual >>
