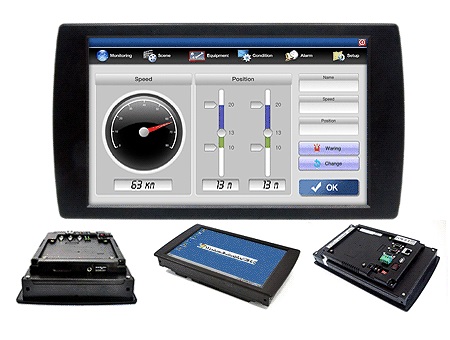

CWV2-102BR - 10.2" Windows CE Industrial Panel PC (1GHz ARM Cortex-A8)

Zoom

Our Price: £616.80(£740.16 Inc. VAT)

–+

Notify me when this item is available

Availability:

Incoming, 10-14 days

The CWV2-102BR combines a graphic display and touch interface with a high efficiency industrial controller. It is equipped with Microsoft Windows CE 6.0 Embedded, a stable operating system used in many industrial touchscreen applications. The CWV2-102BR offers RS232, RS485, USB and Ethernet for external communication. Using the Cortex-A8, 1GHz ARM Processor with 512M of memory, the CWV2-102BR is a higher performance industrial panel PC.

10.2" Color TFT Touch Screen
800 x 480 resolution, 260K colors
Bezel type case
Windows Embedded CE 6.0
S5PV210 (ARM Cortex-A8 1GHz)
SDRAM 512MB / eMMC 4GB
2 RS-232C Serial Ports
1 RS-232C/RS-485 Serial Port
100Base-T Ethernet
1 USB Host Port
1 USB Device Port
1 0.8W Speaker Output
4-Wire Resistive Touchscreen
0~70℃ Operating Temperature
DC12V~DC24V, 10W (0.8A@ DC12V)

The CWV2 Series combines a graphic display and touch interface with a high efficiency industrial controller.

It is equipped with Microsoft Windows CE 6.0 Embedded, a stable operating system used in many industrial touchscreen applications. Windows CE supports applications developed in Microsoft Visual Studio 2005 and other development tools able to create Windows CE ARM executables. It can also run NSBasic scripts.

Developing for the CWV2 Series is similar to normal PC program development; anyone with previous PC programming experience can develop CWV2 Series applications without difficulty. The CWV2 Series supports the .NET Compact Framework (1.0, 2.0) which reduces development and testing time by allowing the use of cross-platform .NET functions.

The CWV2 Series offers RS232, RS485, and Ethernet for external communication. It can even browse web sites using the internal browser, which is useful for displaying diagnostic data or even remote control panels through a web interface.

Depending on which CWV2 Series features you choose to access, it can be used for anything from it can be used for anything from a user interface panel to the main controller for your automation equipment.

Development Environment

The CWV2 Series can execute Windows CE applications developed with Microsoft Visual Studio 2005. Developing for the CUWIN is similar to PC development.

Managed Code (.NET Compact Framework)

The CWV2 Series supports code developed for the .NET Compact Framework. Managed code can be generated in Visual Basic .NET, Visual C#, etc.

Native Code

Application performance can be increased by developing native code instead of managed code. However, the .NET Compact Framework supplies a wide range of useful functions, so native code may require more time to develop. Developing native code requires installing the correct SDK for the target hardware, in this case the CUWIN. Please refer to chapter 4-4 for details regarding the installation of the correct SDK for developing native code. Native code can be developed with tools such as Embedded Visual C++ 4.0, Visual Studio 2005 C++ and Basic, etc.

Note - in order to develop the applications for CWV2 Series by EVC(Embedded Visual C++) or Visual Studio 2005 C++ Tool, CUWIN SDK must be installed.

3rd Party Software

NEW - updated CWV2 Series Windows CE 6.0 Panel PCs with the necessary operating system components to support Wonderware InduSoft Web Studio 8.0 and CEView.

Web Studio 8.0 is a development environment and runtime toolkit for creating SCADA HMI applications, dashboards, and OEE interfaces. Applications can be developed on a Windows host PC and executed on our CUWIN Windows CE 6.0 Panel PCs with CEView. More Information >>

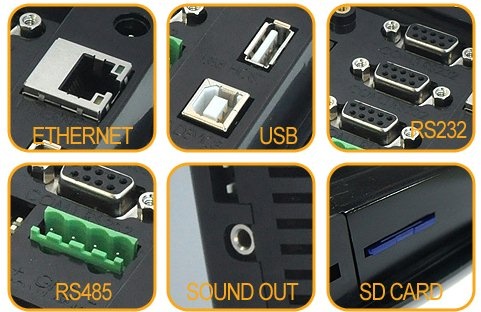

Device Features

Sound

The CWV2 Series contains a built-in 0.8W speaker for mono sound. For stereo sound, headphones or external speakers can be connected to the CUWIN using the 3.5mm audio jack.

USB Ports

The CWV2 Series has one USB Host port and one USB Device port, both capable of USB Low and Full speed operation.

The USB Host port (rectangular USB A-style connector) can be used to connect USB mice, keyboards, and Flash drives. Using more than one USB device at a time will require the use of an external USB hub.

The USB Device port (square USB B-style connector) is used to connect to a desktop computer for device access over ActiveSync

SD Flash Memory

The CWV2 Series SD memory slot supports cards up to 2 Gigabytes in capacity. SD Flash memory can be used in the following ways:

Application storage; images, sounds, log files etc.,. for use with native Windows CE programs
Custom Truetype fonts. Additional fonts can be placed in a \Fonts directory on the storage card. On the next reboot, the fonts will be recognized automatically.
Convenient storage for large programs. The Auto-Run feature can execute a program in an \AutoRun folder on the storage card.

Ethernet

The CWV2 Series has one 10base-T RJ45 10/100M Ethernet port.
