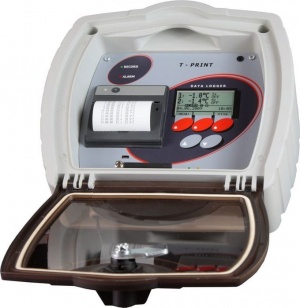

G0841M Temperature recorder for semi-trailer with built-in GSM modem

G0841M Temperature recorder for semi-trailer with built-in GSM modem
  Zoom
 G0841M Temperature recorder for semi-trailer with built-in GSM modemG0841M Temperature recorder for semi-trailer with built-in GSM modem
Our Price:  £819.00(£982.80 Inc. VAT)
+
Temp Sensor 1:
Temp Sensor 2:

Temperature Inputs:  2

Availability:



Special order, 5-10 day despatch

The G0841M temperature recorder is for use with freezer trailers and can log and print up to 2 temperatures during during transport of food, pharmaceuticals, flowers, live animals and other perishable goods. The G0841M has a GSM modem so that temperature data can be sent via text message as well as under or over temperature alarms. The G0841M also has 2 contact inputs to record say door openings, fridge unit operation, etc. Featuring easy history printouts, printout of table and graphs, large graphic illuminated display, indication of temperature high or low alarms by LED and built-in siren.


  • Record from one or two temperature probes - 5m to 20m cable lengths available
  • Temperature Measuring Range -90 to +260°C
  • Delivery Ticket, Journey Ticket and Multi Day printouts
  • Selectable numerical and graphical print-out
  • Print from the last record to the history till button is pressed
  • Print up to set hour in current day
  • Print of set number of hours to the history
  • Fast print to usual 57mm thermo paper in 10m rolls
  • Large graphic illuminated display
  • Approximately 3400 record lines/one paper roll
  • High/Low Temperature Alarms - LED and built-in siren
  • Data logging interval adjustable from 1 minute to 60 minutes
  • Total memory capacity 1MB - up to 172,000 records (up to 5 years of record permanently in memory)
  • Record of actual or average values
  • Calculated MKT - mean kinetic temperature for storing of pharmaceuticals in the PC program
  • Cyclic record - after filling the memory oldest records are overwritten by new
  • Operating temperature range -30 to +65°C
  • Built-in GSM Modem;
    • send  alarm SMS messages to  preconfigured phone numbers when temperature fall outside high and low limits (also including the binary inputs)
    • sends alarm SMS messages to  preconfigured phone numbers on recorder error
    • getting of the current measured values from the recorder
    • setting up the modem remotely (with restrictions)
  • USB interface for record download to the PC
  • Free PC software
  • RS232 socket for connection to external GSM modem
  • Dimensions 175 x 124 x 51mm (W x H x D)
  • Power: 9 to 32 V dc, protected against alternator load shedding, internal Lithium back-up battery
  • Includes traceable calibration certificate
