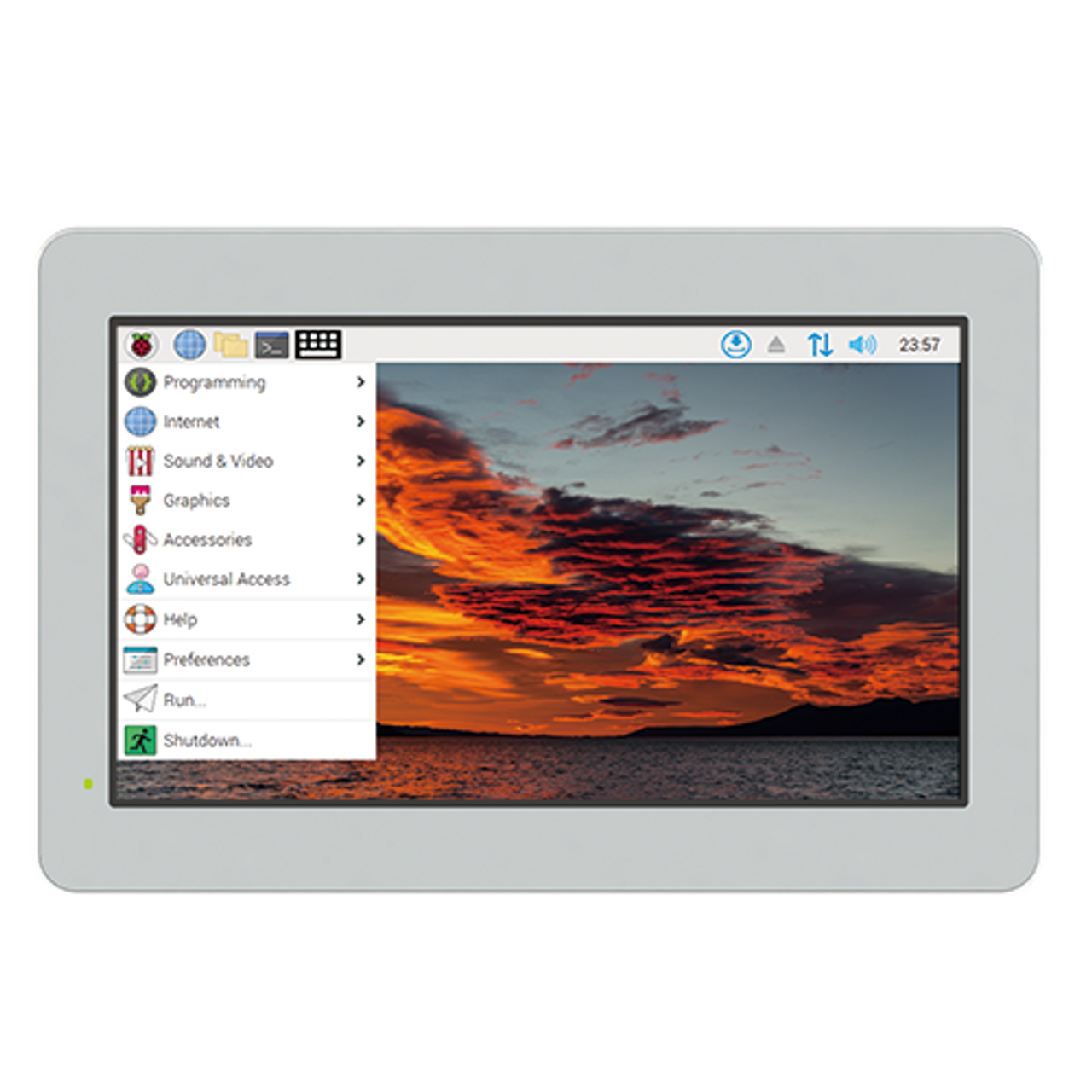

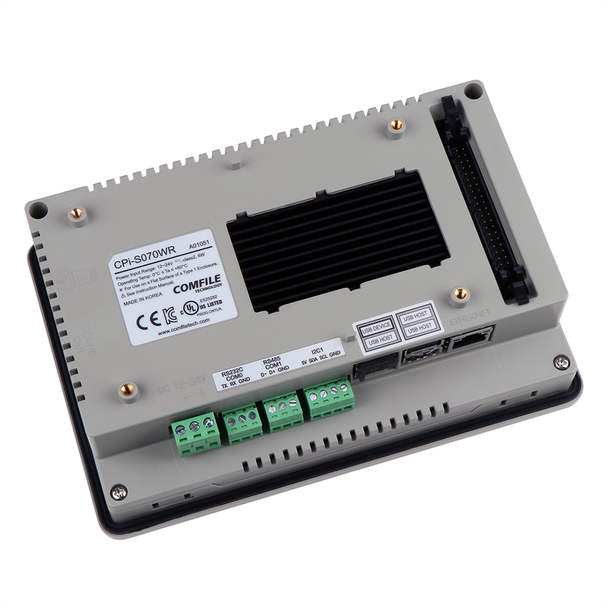

CPi-S070WR 7" Industrial Raspberry Pi Touch Panel PC

£410.00
(£492.00 Inc. VAT)
Incoming, 10-14 days
+

The ComfilePi is a Raspberry Pi-based industrial touch panel PC. The CPi-S070WR utilizes the Raspberry Pi Compute Module 4S.

  • Broadcom BCM2711, Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz (Compute Module 4S)
  • Raspberry Pi OS preloaded L
  • arger externally exposed heatsink
  • 7" LCD (800 × 480) (550 candela)
  • Pressure-sensitive Touch Screen (Resistive Film Type)
  • 1GB RAM
  • Built-in RTC
  • GPIO x 22 (includes ESD protection circuit), 40-pin header socket
  • Power: DC12 ~ 24V input
  • USB ports x 3 (USB2.0) plus 1 eMMC programming port
  • Supports booting from USB out of the box.
  • Ethernet port (10/100 Mbps)
  • RS-232C x 1
  • RS-485 x 1
  • I2C x 1
  • Electro-magnetic Buzzer
  • Stereo Audio Output
  • Water-Resistant Front Panel (IP65)
  • WiFi: USB dongle required
  • Operating temperature: 0°C ~ 60°C
  • Storage temperature: -20°C ~ 80°C
