Temperature probe Pt1000TR160/E, ELKA connector, cable 2M

Temperature probe Pt1000TR160/E, ELKA connector, cable 2M
  Zoom
Our Price:  £31.00(£37.20 Inc. VAT)
+

Availability:



Special order, 10-15 day despatch

Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

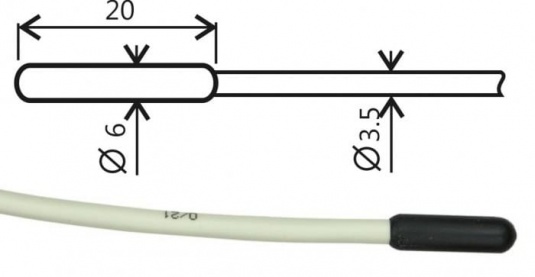

Tolerance t = ±(0.30+0.005*|t|) - class B in accordance with IEC751. Polyamide enclosure with shielded PVC cable of specified length. Enclosure diameter 6mm, length 20mm. Diameter of the cable 3. With ELKA connector.

TECHNICAL DATA

MEASURED VALUE

Temperature

TEMPERATURE SENSOR

  • Measuring range -30 to +80 °C
  • Accuracy ± (0.3 + 0.005 t) at °C
  • Accuracy class A
  • Time response t0.5 <12 s (in flowing water at > 0.2 m/s) t50 <12s, t90 <32s (in liquid)
  • Type of sensing element Pt1000
  • Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

  • Wire connection 2-wire connection
  • Material of the case POLYAMIDE-based plastic
  • Dimensions of the case length 20 mm; diameter 5.7 ± 0.1 mm
  • Lead-in cable PVC shielded
  • Length of lead-in cable 2 meters
  • Connector ELKA
  • IP protection IP67
  • Warranty 30 months
