TDS-RS485 - LED Display for Modbus Devices

TDS-RS485 - LED Display for Modbus Devices
  Zoom
Our Price:  £69.00(£82.80 Inc. VAT)
+

Availability:



2 in stock, immediate despatch

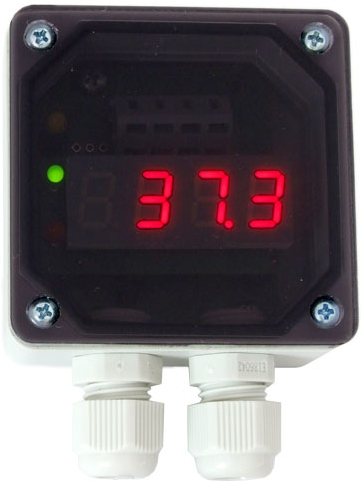

The TDS module is a 4-digit 7-segment LED display with two universal indicators. It communicates via RS485 bus enabling to connect several devices by a four-wire bus containing a RS485 line and power supply line over a distance of up to 1200 m. The devices use ASCII or MODBUS RTU protocol to communicate with the display.




  • 7-segment LED display for four digits
  • 2 indicators
  • RS485 communication
  • Spinel or MODBUS RTU communication protocol (user selectable)
  • The display can show the values measured by the Wix software
  • Hardware communication indication (LED)
  • Compact
  • Ingress Protection Rating: IP64
  • Supply voltage: 7 to 30 V DC at typically 30 mA at 12 V
  • Dimensions:  62 mm x 62 mm (84 mm) x 32.5 mm
  • Operating temperature: -20 °C to +70 °C




Downloads

User Manual >>

Modbus Communications Description >>
