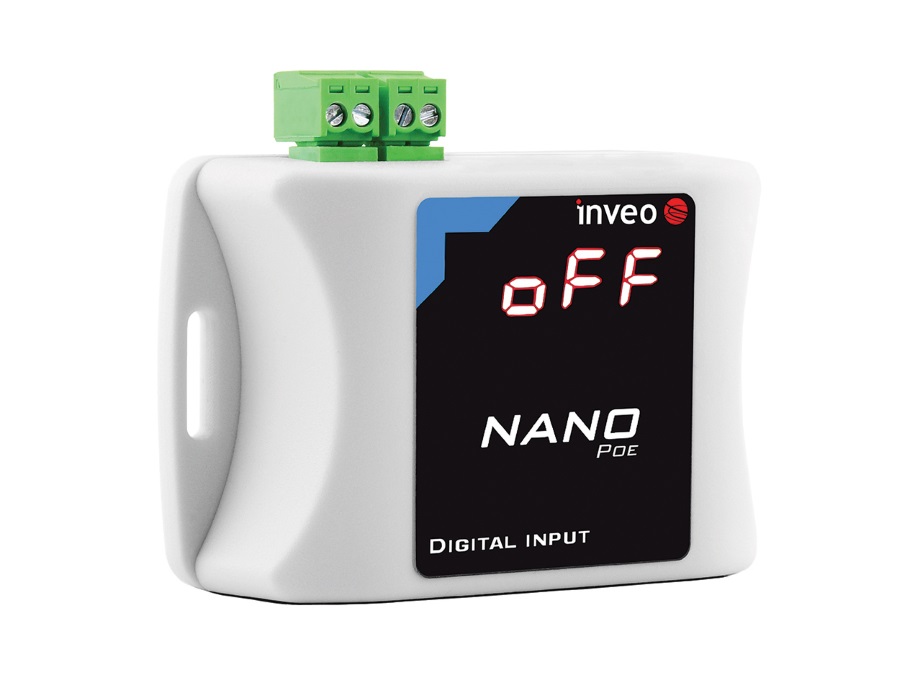

NANO_IN_POE - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP, LED Display, POE

NANO_IN_POE - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP, LED Display, POE
  Zoom
 NANO_IN_POE - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP, LED Display, POENANO_IN_POE - Ethernet Digital input Unit with pulse counting, Web, SNMP, Modbus TCP, LED Display, POE
Our Price:  £84.00(£100.80 Inc. VAT)
+

Digital Inputs:  1
Pulse Counter Inputs:  1

Availability:



Special order, delayed despatch

The NANO_IN_POE is a Ethernet Web controlled digital input unit with a single opto-isolated input that can also count pulses. Input status The input status is also visible on the 7-segment LED display. The device can be powered by PoE compliant with IEEE 802.3af or 12-24 VDC power supply. Users can monitor the input from any web enabled device or using the Android App. The unit also supports SNMP for IT users and Modbus/TCP for industrial users.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 1 x opto-isolated digital input
  • Volt-free contact closure or voltage input;
    • logic level 1: 10~24V
  • Input also operates as 100Hz pulse counter
  • Isolation Voltage: 2000Vdc
  • Web Interface
  • Communications Protocols;
    • HTTP (GET)
    • SNMP (Trap)
    • Modbus TCP
    • TCP (shared protocol)
    • MQTT Inveo
  • Android App
  • Dimensions: 66mm x 50mm x 20mm
  • Power supply: 10-24VDC or PoE IEEE 802.3af
  • Operating Temperature: -10°C to 60°C
  • CE compliant

Web Interface

The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.

Direct connection between modules (bridge connection)

The NANO_IN can be configured in a bridge connection where the digital signal is reproduced on a NANO_OUT output Relay.

LanTick Logger Application

LanTick Data Logger application which enables monitoring, stored in a CSV format and send via e-mail inputs and outputs states.

Android App

It is possible to control multiple LanTick Pro devices from the dedicated android App




Downloads

User Manual >>

Search Utility >>

LanTick Logger Application >>
