X-401-I Dual Relay and Input Module 9-28 VDC

X-401-I Dual Relay and Input Module 9-28 VDC
Our Price:  £210.00(£252.00 Inc. VAT)



4 in stock, immediate despatch

Web-Enabled 2 I/O Controller I/O: 2 Digital Inputs, 2 Relays Power Supply 9-28VDC

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

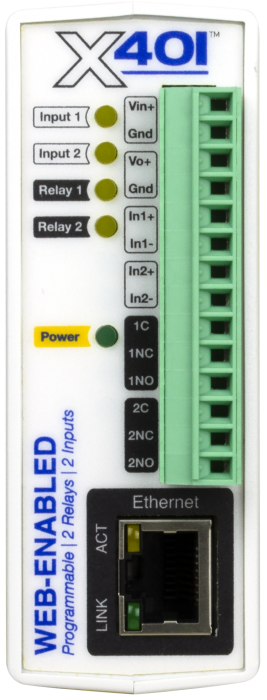

The X-401 is a direct replacement for our X-301 (WebRelay-Dual). It has two SPDT relays (form C) and two optically-isolated inputs, plus all of the advanced features from our 400-series products.

Powerful scheduler with normal and override schedules, super flexible task builder, encrypted web pages, seamless peer-to-peer communications, and much more.

No software required, no programming necessary, and no subscription to buy.

The X-401 has a built-in web server so it can be set up, controlled, and monitored using a standard web browser.


2 Electro-mechanical relays
Two optically-isolated digital inputs
Peer-to-peer communications between 4xx Series modules which provides seamless I/O sharing
User Permissions: Admin, Manager, User
Programmable tasks for scheduled events or conditional logic
Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail)
Real-Time Clock with NTP server synchronization
Automatic daylight savings and leap year adjustment
Customizable web-based Control Page
BASIC script support for advanced flexibility
Configurable logging
Graphing (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP Filtering
No software required
Removable 14-Terminal connector for easy installation
Rugged DIN-Rail/wall-mountable enclosure


X400 Series Users Manual: https://www.controlbyweb.com/x400/x-400_users_manual.pdf

Product Overview: https://www.controlbyweb.com/x401/x-401.pdf

Quick Start Guide: https://www.controlbyweb.com/x401/x-401_qsg.pdf
