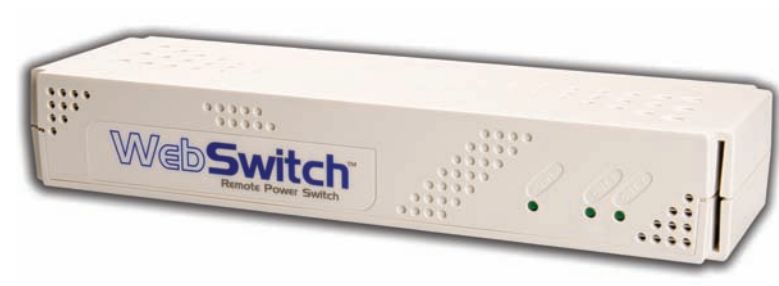

WebSwitch PLUS - Ethernet Reboot and Power Switch with Digital and Temperature Inputs

Zoom

Our Price: £271.20(£325.44 Inc. VAT)

–+

Notify me when this item is available

Digital Inputs: 2
Digital Outputs: 2
Temperature Inputs: 3

Availability:

Incoming, 7-10 days

The ControlbyWeb WebSwitch PLUS™, Remote Power Switch, is the ideal solution for remote reboot and many other remote power control applications. WebSwitch PLUS™ has two power outlets which can be independently controlled using a web browser. In addition it supports temperature monitoring, digital inputs, event scheduling, logging, and email alerts.

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

2 x Mains sockets max 10A
Control from a standard web browser - no special software required
Relay Control Options: On/Off or Reboot/Pulse
Automatic Reboot, use to reboot devices when ping responses fail
Temperature and/or humidity sensors can be added for environmental monitoring
Dry-contact sensors or switches can be connected for local control of outlets or for monitoring external devices.
Real-time clock, can automatically adjusts for daylight savings time, sync with NTP server
Added relay contact protection
Event scheduler with yearly calendar
Customizable email alerts
Logging; log outlet changes, automatic reboots, high/low temperatures, network traffic, and more
System log provides detailed diagnostic information
Simple scripts can be written in BASIC for advanced functionality
Configure manually or with DHCP
Built-in web server provides direct access to device - no external servers, services or subscriptions required.
Supports HTTP, SNMP, and Modbus/TCP
"Remote Services" can be used to initiate connection with external servers
Password protection
IP filter provides simple firewall
Selectable TCP Ports
10/100 Mbps Ethernet connectivity
Field re-programmable; install firmware updates when available
Attractive, rugged enclosure made of flame resistant plastic
Operates worldwide (100-240V AC; 50/60Hz)
Wall mountable or optional rack mounting kit available
Dimensions: 270mm x 44mm x 84mm
Power Requirements: Input Voltage: 100-240V, 47-63Hz AC

WebSwitch PLUS™, Remote Power Switch, is the ideal solution for remote reboot and many other remote power control applications. WebSwitch PLUS™ has two power outlets which can be independently controlled using a web browser. It is completely self-contained and includes a built-in web server so no external servers, services, or subscriptions are required.

WebSwitch PLUS™ includes additional features such as remote temperature monitoring, discrete inputs, event scheduling, logging, and email alerts. This provides a more complete solution for remotely controlling servers and monitoring their environment.

CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.

Downloads

Quick Start Guide >>

User Manual >>

SNMP MIB File >>

CBW iPhone/iPad App >>

CBW Android App >>
