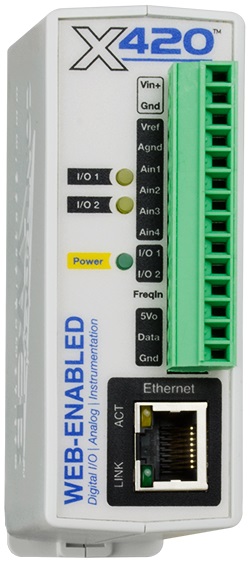

X-420-E POE Web-Enabled Analogue and Digital Programmable Controller

X-420-E POE Web-Enabled Analogue and Digital Programmable Controller
 X-420-E POE Web-Enabled Analogue and Digital Programmable ControllerX-420-E POE Web-Enabled Analogue and Digital Programmable Controller
Our Price:  £320.00(£384.00 Inc. VAT)

Analogue Inputs:  4
Digital Inputs:  2
Digital Outputs:  2
Temperature Inputs:  16
Humidity Inputs:  16



Incoming, 7-10 days

The X420 is a fully-featured Ethernet Analogie and Digital I/O control module with an innovative solution for creating advance logic control tasks without the need for scripting. No software required, no programming necessary, and no subscription to buy. With the X-420, you can control, monitor, and log up to 100 inputs and/or outputs from up to 32 remote I/O modules using the X-420's intuitive web interface. Also supports email alerts on user-defined conditions and Modbus, SNMP protocols.

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Four analogue inputs: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA
  • Two configurable digital inputs/outputs 0-5VDC
  • One AC coupled frequency input
  • One-wire bus for up to 16 sensors (temperature, humidity, ultrasonic sensors, etc.)
  • Control, monitor, and log 32 remote modules, or up to 100 I/O
  • User Permissions: Admin, Manager,
  • UserTasks
    • 50 Scheduled
    • 50 Conditional
    • 16 Automatic Reboot
    • 20 Override Schedules
  • Send email alerts based on user-defined conditions
  • Real-Time Clock with NTP server synchronization
  • Automatic daylight savings and leap year adjustment
  • Highly configurable - Almost any combination of input/relay control possible
  • No software required
  • Customizable web-based control page
  • BASIC script support for advanced flexibility
  • Configurable logging (Log File Size: 512K (up to 8,448 logs))
  • Graphing (logged data)
  • Supports encrypted email servers, such as Gmail
  • HTTPS/TLS encrypted
  • Static or DHCP IP address configuration
  • Modbus, SNMP, Remote Service, IP Filtering
  • Field updatable
  • Removable 14-Terminal connector for easy installation
  • Rugged DIN-Rail/wall-mountable enclosure
  • Power: Power Over Ethernet, 803.af compliant network
  • Size: 35mmx 98mmx 78mm

Built-in IO

4 Analogue Inputs (Multi-Function)

Configurable for single-ended, differential or 4-20mA (0-20mA) input operation. Monitor industrial sensors, wind direction sensors, pressure transducers, and much more.

2 Digital I/O

  • Inputs: Monitor dry contacts including push buttons, magnetic door alarm switches, micro-switches, etc.
  • Outputs: Provides a digital logic signal which can be connected to a solid-state relay to control motors, pumps, lights, etc.

1 Frequency Input

AC coupled frequency input - Monitor a frequency input such as: Magnetic wind speed sensor, transformer, etc

16 1-Wire Sensors

Monitor up to 16, 1-Wire sensors such as: Temperature, humidity, ultrasonic, etc.

Control up to 100 I/O

The X-410 supports machine-to-machine communication between ControlByWeb modules. It supports communications with up to 32 modules and allows you to monitor and control up to 100 I/O points. The X-410 can communicate with ControlByWeb devices* but offers instantaneous messaging between X-400 series products. The X-410 can monitor and control I/O on other X-400 series products as if it were all one big module.

Task Builder

The X-410's built-in interface allows you to create custom "Tasks" for simple and advanced control logic. Easily create tasks based on time, input or outputs’ status, or device responsiveness. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!

Create up to 50 Scheduled, 50 Conditional, 16 Auto Reboot Tasks, and 20 Override Schedules.

  • Conditional Tasks - Conditional tasks are triggered depending on an I/O's status. Conditional tasks are commonly used for sending high/low temperature alerts, controlling alarms, etc.
  • Scheduled Tasks - Scheduled tasks perform actions at preset times on specific days. You can also choose to override these scheduled tasks on certain days (i.e., Holidays). Scheduled tasks are commonly used for controlling shift bells, parking lot/stadium lights, magnetic locks, generators, etc.
  • Advanced Logic - Automatically reboot devices (cameras, routers, servers, etc.) when they become unresponsive. Also write BASIC scripts for more advanced logic.


The X-410 offers the ability to log a variety of data points such as local and remote I/O, registers, tasks, and voltage. Log entries can be made at preset intervals, scheduled times, triggered by I/O changes, or triggered by logic events. Graph the current log file and view the I/O's status over time. Schedule a daily log file to be sent via email or uploaded via FTP server.

Other Advanced Features

The X-410 has more advanced features such as the ability to initiate a connection to remote servers, BASIC programming, admin/manager/user permissions, etc.

Smartphone App

CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
