Analogue Inputs: 8
2 in stock, immediate despatch

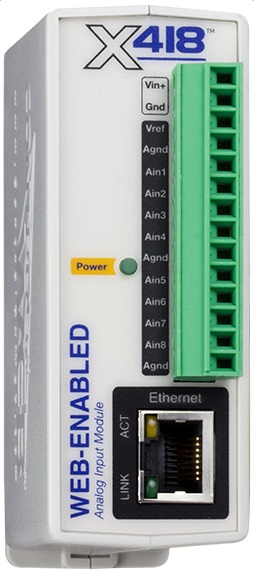

The X-418 features an eight-channel, 16-bit, analogue data acquisition system. Each channel is configurable for single-ended or differential inputs. Programmable voltage ranges include; ±1.28V, ±2.56V, ±5.12V, and ±10.24V. Four of the channels can be configured for 4-20mA operation. With the X-418, you can monitor, and log up to 100 inputs and/or outputs from up to 32 remote I/O modules using the X-418's intuitive web interface. Also supports email alerts on user-defined conditions and Modbus, SNMP protocols.
8 Analogue Inputs (Multi-Function)
The X-418 features an eight-channel, 16-bit, analogue data acquisition system. Each channel is configurable for single-ended or differential inputs. Programmable voltage ranges include; ±1.28V, ±2.56V, ±5.12V, and ±10.24V. Four of the channels can be configured for 4-20mA operation. The 4-20mA mode enables a precision internal shunt resistor and configures the A/D for ±5V operation.Monitor industrial sensors, wind direction sensors, pyranometers, pressure transducers, and much more.
The X-418 supports machine-to-machine communication between ControlByWeb modules. It supports communications with up to 32 modules and allows you to monitor and control up to 100 I/O points. The X-418 can communicate with ControlByWeb devices* but offers instantaneous messaging between X-400 series products. The X-418 can monitor and control I/O on other X-400 series products as if it were all one big module.
The X-418's built-in interface allows you to create custom "Tasks" for simple and advanced control logic. Easily create tasks based on time, input or outputs’ status, or device responsiveness. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!
Create up to 50 Scheduled, 50 Conditional, 16 Auto Reboot Tasks, and 20 Override Schedules.
The X-418 offers the ability to log a variety of data points such as local and remote I/O, registers, tasks, and voltage. Log entries can be made at preset intervals, scheduled times, triggered by I/O changes, or triggered by logic events. Graph the current log file and view the I/O's status over time. Schedule a daily log file to be sent via email or uploaded via FTP server.
Other Advanced Features
The X-418 has more advanced features such as the ability to initiate a connection to remote servers, BASIC programming, admin/manager/user permissions, etc.
CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
Quick Start Guide >>
User Manual >>
CBW iPhone/iPad App >>
CBW Android App >>
