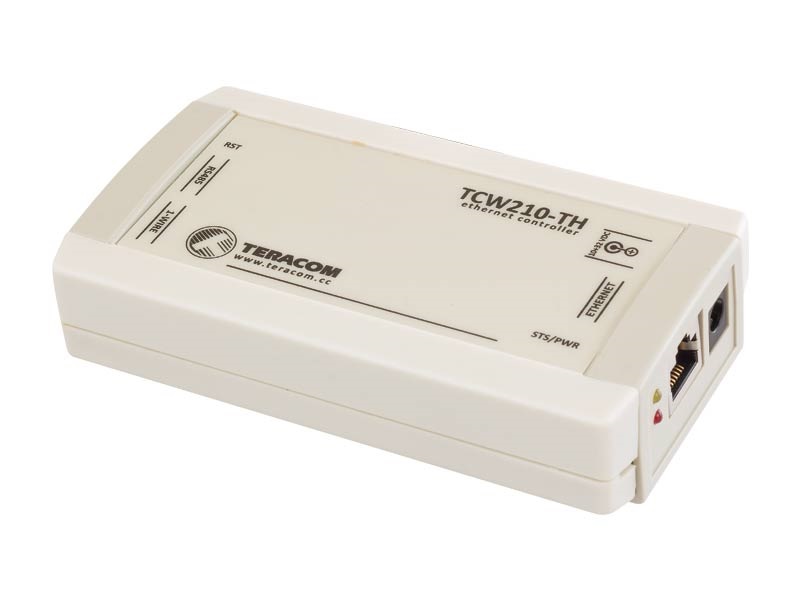

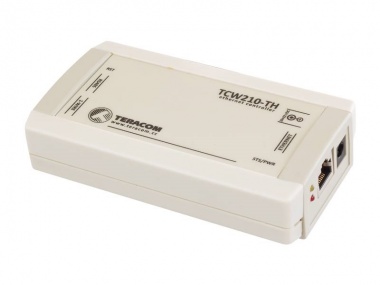

TCW210-TH - Ethernet Temperature and Humidity Data Logger

TCW210-TH - Ethernet Temperature and Humidity Data Logger
  Zoom
TCW210-TH - Ethernet Temperature and Humidity Data LoggerTCW210-TH - Ethernet Temperature and Humidity Data LoggerTCW210-TH - Ethernet Temperature and Humidity Data Logger
Our Price:  £124.00(£148.80 Inc. VAT)
+
Add UK 12V DC Mains PSU:
Add EU 12V DC Mains PSU:

Temperature Inputs:  8
Humidity Inputs:  8

Availability:



2 in stock, immediate despatch

The TCW210-TH is a temperature and humidity data logger with Ethernet interface for communication. Real-time data and charts of temperature, humidity and dew point can be monitored with a standard web browser. Data is logged to the large internal memory for download at a later date or the log file can be periodically uploaded on a dedicated server by HTTP Post. Standard protocols as SNMP, MODBUS/TCP, and HTTP/API are also as well as communication with ThingSpeak cloud server.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Temperature and humidity data logger for up to 70000 records
  • Log Rate from 10 to 3600 seconds
  • Logging can be continuous or on an alarm condition
  • Temperature, humidity and dew point graphical presentation
  • Temperature Measurement Range: -40 to +85°C
  • Humiditiy Measurement Range: 0-100% RH
  • 1-Wire sensors for shorter cable distances (<15m)
  • RS-485 sensors for longer cable runs (up to 30m) in noisy electrical environments
  • Up to 8 sensors support (up to 24 parameters)
  • MODBUS TCP/IP support
  • SNMP v2 support with trap alerts to up to 5 recipients
  • Secured email transfer with TLS 1.0, TLS 1.1 and TLS 1.2 support
  • Periodical HTTP Post of XML/JSON status files for client-server systems
  • Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic providers
  • Network time protocol (NTP) support for time synchronization
  • ThingSpeak service support
  • Remote firmware update via standard browser
  • Power Supply: 10 - 32VDC, 170mA @ 12V
  • Dimensions: 130mm х 70mm х 30mm

TCW210-TH is a temperature and humidity data logger with Ethernet interface for communication. Real-time data and charts of temperature, humidity and dew point can be monitored with a standard web browser (no special software is needed).

The device records all monitored parameters in internal FLASH memory. The records are made on the previous set time interval and/or on an alarm condition. The capacity of memory allows at least 48 days log with records on every 1 minute. The log file can be periodically uploaded on a dedicated server by HTTP Post.

The logger utilizes circular buffer in FLASH memory. When it is full, the new data overwrites the oldest one. In this manner FLASH memory stores full log all the time. There isn’t a command to clear the log for security reasons. A copy of the full log is always available for download.

The TCW210-TH can measure data from up to 8 temperature or temperature/humidity sensors using either the 1-wire interface or the more robust RS485 bus. (No support for 3rd part RS485 sensors)

TCW210-TH can initiate a connection (HTTP Post) to remote dedicated servers. The payload of this post is XML or JSON file. The files contain current values of monitoring parameters. HTTP post can be sent periodically or on previous set alarm conditions.
Standard protocols as SNMP, MODBUS/TCP, and HTTP/API are also available for M2M applications.

TCW210-TH supports communication with ThingSpeak server. Four different parameters (channels) can be processed simultaneously. How to install a local ThingSpeak server can be seen here.

Online Demo >> (admin, admin)

TC Monitor Software

TC Monitor is easy to use Windows application for monitoring and control of TCW products. TC Monitor can collect and display data from controllers installed in different locations (sites). The collected data is stored in SQL database and can be displayed or exported in MS Excel format for further analysis. TC Monitor has a simple web interface, which enables easy and fast configuration. Monitored parameters can be 1-wire sensors, digital and analog inputs and relay outputs.

The free version of TC Monitor provides 10 credits, this means up to 10 different parameters can be monitored and logged. More Information >>



Downloads

User Manual >>

TCW Discover Utility >>

TC Monitor Manual >>

TC Monitor Download >>

How to use MODBUS RTU sensors -  https://www.teracomsystems.com/blog/modbus-rtu-sensor-using-tcw260-tcg140-4/
