Temperature Inputs: 1
Special order, 5-10 day despatch

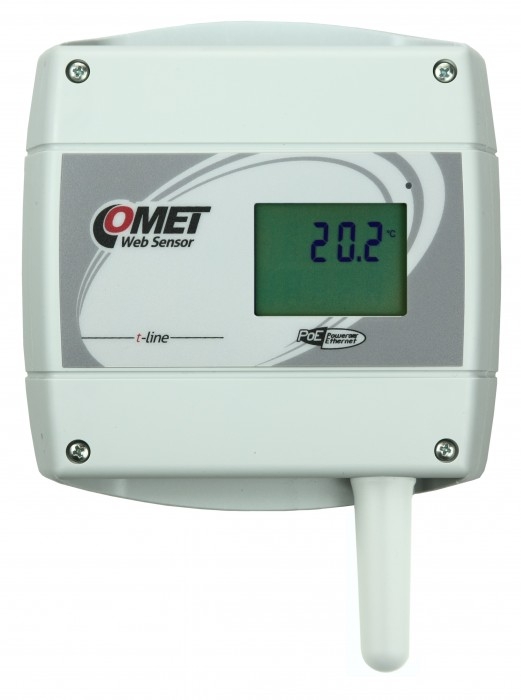

The T0610 is a Power over Ethernet (POE) thermometer featuring LCD for local display, email and SNMP under/over temperature alarm, a built-in webserver for real time temperature display and history chart and MODBUS protocol for SCADA compatibility. A low-cost solution for Temperature monitoring and alarm for use in server room, data centre, museum, medical and industrial environment monitoring applications
The T series has a built-in web server showing current temperature values, alarm limits alarm state and recorded history in both tabular and chart formats. It can be viewed by any web browser. Measured value is in graph displayed by green colour, error or not yet measured values are displayed as grey broken line. Upper (lower) alarm value is in graph displayed as red (blue) line. If all values are over upper (lower) limit, the alarm line will be in the bottom (top) graph part displayed. It is possible export history to CSV file (comma or dot decimal separator) for import to Excel.
Example Web Page >>
User Manual >>
SNMP MIB Tables >>
LabVIEW VI >>
