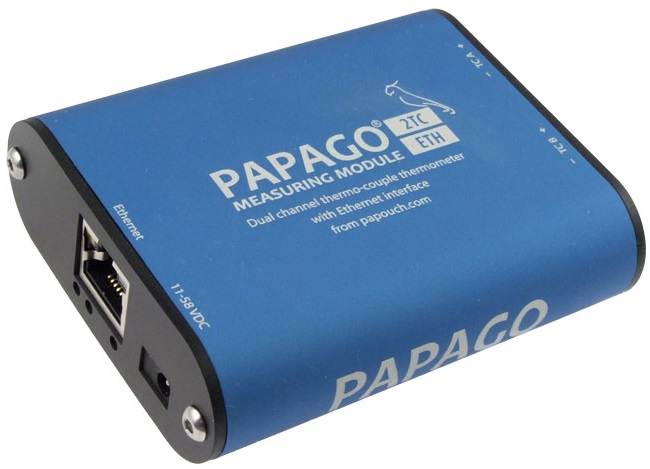

Papago 2TC_ETH - Ethernet Type K Thermocouple Thermometer with Web Server, SNMP ,email

Papago 2TC_ETH - Ethernet Type K Thermocouple Thermometer with Web Server, SNMP ,email
  Zoom
Papago 2TC_ETH - Ethernet Type K Thermocouple Thermometer with Web Server, SNMP ,emailPapago 2TC_ETH - Ethernet Type K Thermocouple Thermometer with Web Server, SNMP ,emailPapago 2TC_ETH - Ethernet Type K Thermocouple Thermometer with Web Server, SNMP ,email
Our Price:  £174.00(£208.80 Inc. VAT)
+
Add UK 15V DC Mains PSU:

Temperature Inputs:  2

Availability:



Incoming, expected soon

The Papago 2TC ETH is an Ethernet temperature alarm unit accepting 2 x type-k thermocouples, offering a temperature measurement range of -50°C to +1350°C. The Papago 2CT ETH is web based, with monitoring and setup all performed via any web browser. emails can be sent on alarm and the unit supports TCP, UDP, HTTP (WEB), SMTP (e-mail), SOAP, Modbus TCP and SNMP protocols. The FREE Wix chart/data logging software is also available.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Ethernet based Temperature Alarm unit
  • Measures two external type-k thermocouples (not included)
  • Connection via standard thermocouple connector
  • Range: -50 to +1350°C, increment 0.1°C
  • Measurements per second: 1, 2 or 5 according to the settings
  • Automatic e-mail alarms when pre-set thresholds are exceeded.
  • SNMP and MODBUS TCP protocols - simple to integrate with management or SCADA software
  • Automatic temperature sending via HTTP GET request.
  • Automatic temperature sending via HTTP POST in XML format.
  • Temperature and all settings easily accessible in XML format.
  • FREE Wix software for displaying and logging temperature values
  • Both sensors connected to a removable screw terminal block
  • Power Supply: PoE standard: IEEE 802.3af or external power supply 11 to 58 V DC
  • Typical power consumption 1.8 W
  • Dimensions (without connectors): 88 × 70 × 25 mm
  • Operating temperature range: -20 to +70 °C

WEB page

It is possible to easy monitor the measured temperatures and also to configure 2TC_ETH over the Intranet interface. The pages are secured by means of user name and password. It is possible to setup a separate password for the configuration and another one for the display of current values.

XML file

It is also possible to import all the values from 2TC_ETH in the XML file format. This format is easy to process by the application or to read by the web service.

SNMP protocol

The SNMP protocol is used in large companies for the centralized administration and monitoring of all hardware and technologies. 2TC_ETH is able to communicate via this protocol and, according to the setup, It sends SNMP traps when the pre-set critical limits are exceeded. It is also able to periodically send traps with current values.

E-mail

The 2TC_ETH can send e-mails if one of the thresholds set for any of the measuring channels has been exceeded.

TCP or UDP protocol

The is also able to operate as the TCP client or TCP server or to communicate via UDP. An ASCII protocol is used by 2TC_ETH in these ways of communication. This way of communication is similar to the serial link communication.

MODBUS TCP protocol

2TC_ETH is also able to communicate via the standard industry protocol of MODBUS TCP use by popular SCADA packages such as DAQFactory

Wix - FREE Powerful datalogging, charting and alarming sftware


  • Display of numeric values.
  • Viewing the colour column (ie bar graph) with colour according to the current value.
  • View the text of the current value.
  • View the chart - add several charts, add channels to a single chart
  • Datalogging - Save the history of measurement in a text file for further processing or evaluation.
  • Wix can monitor inputs against pre-set alarm limits;
    • Send alarm e-mail
    • Switching on output (relay) to Quido
    • Reset the counter (counter) input Quido
    • Send alarm text message by SMS (requires GSM MODEM)


Downloads

User Manual >>

SNMP MIB table  >>

Wix Software Download >>
