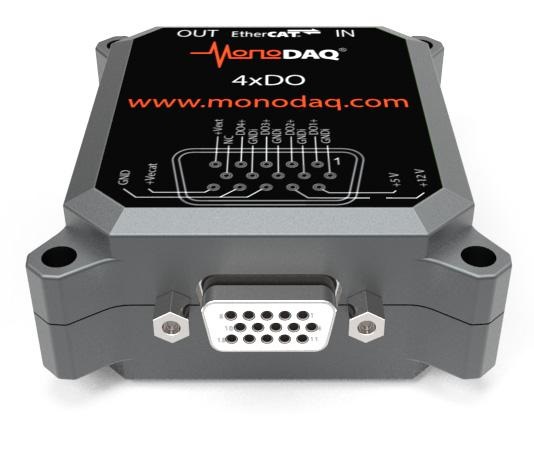

MonoDAQ-E-DO4 EtherCAT Isolated 4-Channel Digital Output Unit

MonoDAQ-E-DO4 EtherCAT Isolated 4-Channel Digital Output Unit
  Zoom
 MonoDAQ-E-DO4 EtherCAT Isolated 4-Channel Digital Output UnitMonoDAQ-E-DO4 EtherCAT Isolated 4-Channel Digital Output Unit
Our Price:  £554.40(£665.28 Inc. VAT)
+

Digital Outputs:  4

Availability:



Special order, delayed despatch

The MonoDAQ-E-DO4  Isolated digital outputs with high current capability can drive motors, pumps or valves as well as trigger pure digital signals. Three power supply voltages (5V, 12V and device voltage supply level) available on the front connector. EtherCAT interface, signal and power over the same cable. Supplied with free copy of DEWESoft DAQ Software.


  • Number of output channels: 4
  • Max. sample rate: 20 kS/s
  • Output type: open collector with active internal pullup to 5 V
  • Sink: max 50 V, 2 A (resistive load, unprotected)
  • Source: 5 V, max. 40 mA (internally limited)
  • Max. switching frequency (for internal PWM): 100 kHz
  • Signal and power isolation from EtherCAT to front-end
  • EtherCAT bus, daisy-chaining with single cable up to 50m device-device
  • Data interface EtherCAT, 100Mbit/s
  • Data interface connectors: RJ45 (1 cable for data, power and sync, daisy chainable)
  • Power supply: 12V to 50V
  • Temperature range: -20°C to 60°C
  • Dimensions: 70x62x28 mm
  • DEWESoft X3 software support
  • Contents:
    • 1x MonoDAQ-E-DO4
    • 1x Passive PoE power injector
    • 1x USB-to-12V power supply

The MonoDAQ-E-DO4  Isolated digital outputs with high current capability can drive motors, pumps or valves as well as trigger pure digital signals. Three power supply voltages (5V, 12V and device voltage supply level) available on the front connector. EtherCAT interface, signal and power over the same cable.

Devices are daisy-chained using standard RJ45 cable.

Software

The MonoDAQ-E-D O4comes with a built-in LITE licence for DEWESoft, a powerful data acquisition, processing and visualization tool.

DEWESoft features all sorts of data analysis tools that can be used in real time on the incoming data. The user can design his/her own user interface with various graphs. All that is required are a few mouse clicks. If the predefined functions are not suitable, mathematical equations can be entered and executed as well. Data can be recorded and exported to all sorts of file formats to allow further analysis and treatment in the tool of your choice. Besides recording data DEWESoft can also record video allowing to visually link data to events.

Features

  • time domain recorder
  • XY recorder
  • FFT recorderscope
  • triggered storing
  • GPS
  • video
  • statistics (RMS, peak-peak, STDV etc.)
  • IIR-, FIR-filters
  • integration, derivation
  • vector analysis
  • export to Excel, Matlab, Flexpro

Downloads

User Manual >>

DEWESoft Software 32-bit >>

DEWESoft Software 64-bit >>
