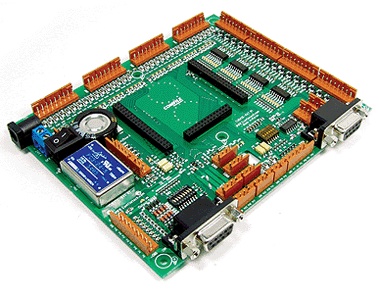

CUBASE-64M - Base Board for the CB290

£159.60
(£191.52 Inc. VAT)
Incoming, 10-14 days
+

CUBLOCBase Boards are CUBLOC I/O expansion boards for industrial field applications requiring 12 or 24V DC inputs and outputs.  The CUBLOCcore modules use 5V (TTL) level signals. Use the CuBASE Base Boards to read all your 12 or 24V real-world signals. PWM outputs can be routed through NPN TR to convert to 24V signal up to about 10KHz or can be configured to output stable voltage from 0 to 5V

For use with the CB290 - not Included - must be purchased seperately



  • Opto-Isolated Input/Output circuit for CUBLOC CB290 module
  • 32 Opto-Isolated 5 to 24V inputs
  • 32 Opto-Isolated 12 or 24V NPN Transistor
  • 8 Channel analogue inputs
  • 6 PWM or 0-5V analogue outputs
  • Keypad header
  • LCD Header
  • 2 x RS232 Ports
  • On-board PSU2 channel RS232 communication port
  • DIN Rail Mount
  • 118.5 x 88.5 x 23.9mm
  • Modbus Master or Slave support
  • FREE Development tools

Downloads

User Manual >>

Software >>

Analogue Inputs
8
Analogue Outputs
6
Digital Inputs
32
Digital Outputs
32
