CP-IO22-A4-2 -Analoge and Digital Expansion for the ComfilePi

Zoom

Our Price: £81.00(£97.20 Inc. VAT)

–+

Availability:

Special order, 7-21 day despatch

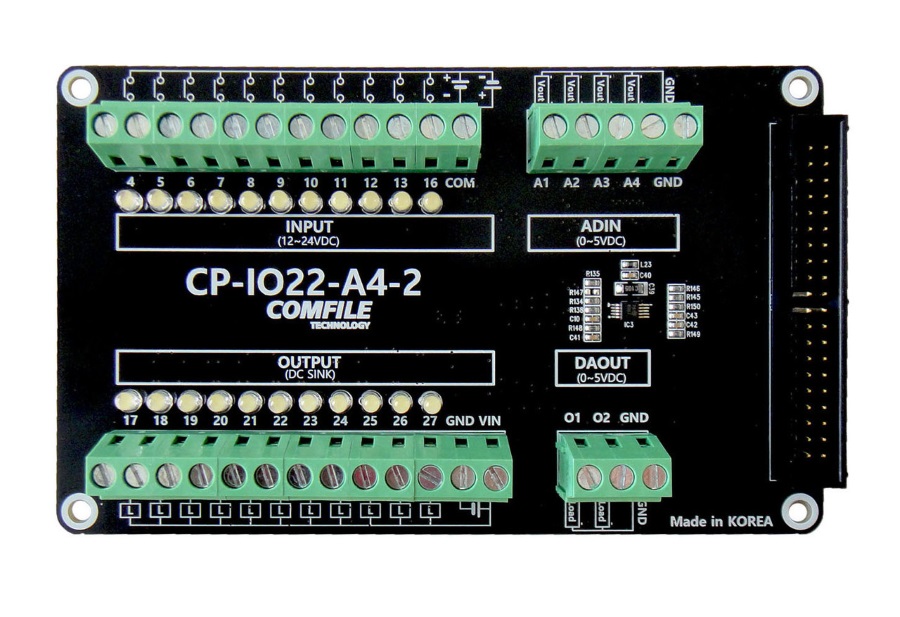

An IO board accessory for the ComfilePi consisting of 22 digital IO (11 inputs, 11 outputs), 4 16-bit analogue inputs, 2 12-bit analogue outputs, screw terminals, and indicator LEDs. It can be mounted to the rear panel of the ComfilePi.

Digital Inputs

Voltage Range: 12 ~ 24V
Absolute Min/Max Voltage Range: 3.3 ~ 28V
Response Time: 5ms
Input OFF Level: <1.8VDC
Input ON Level: >2.5VDC
Indicator LED OFF Level: <4.5V
Indicator LED ON Level: >5.0V

Digital Outputs

DC Output Sink (NPN) x 11
Maximum Output Voltage: 30VDC
Response Time: 10ms
Current: 150mA

Analogue Inputs

4 channels
Input Voltage Range : -5Vdc ~ 0 ~ 5Vdc
Resolution : 187.5uV / 1bit (-26,666 ~ 0 ~ 26,666)
Sample Rate : 1.62mS

Analogue Outputs

2 channels
Output Voltage: 0 ~ 5Vdc
Resolution : 1.22mV / 1bit (0 ~ 4094)
Sample Rate : 12uS
Maximum Output Current : 20mA

Ribbon cable is included

Datasheet >>
