USB-AD14f - USB 20kHz 16 Channel Data Acquisition Unit

USB-AD14f - USB 20kHz 16 Channel Data Acquisition Unit
  Zoom
Our Price:  £199.00(£238.80 Inc. VAT)
+

Analogue Inputs:  16
Analogue Outputs:  1
Digital Inputs:  4
Digital Outputs:  4

Availability:



Special order, 3-5 day despatch

NextView4-Lite  Data Acquisition SoftwareNextView4-Lite Data Acquisition Software

The USB-AD14f is a low cost USB based multifunction I/O unit with 16 analogue inputs, 1 analogue outputs, 4 digital inputs and 4 digital outputs. Data can be acquired at up to 20kHz rate at 14-bit resolution. Supplied with a trial copy of NextView4-Live software for data acquisition and control and a wide selection of Windows, MAC and Linux programming examples.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 16 single ended analogue inputs
  • Up to 20kHz analogue input sampling rate
  • ±10V input range with 14-bit resolution
  • 1 x ±5V 12-bit analogue output
  • 4 digital input and output channels each
  • 16-bit counter (connect to Digital In)
  • USB 1.1 or 2.0 compatible

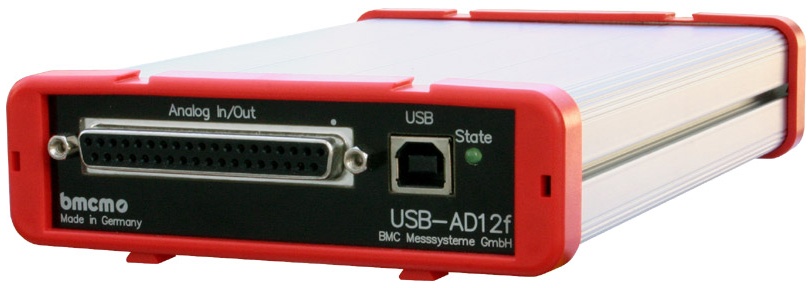

  • Analogue I/O connected via 37-way D-type socket
  • Digital I/O connected via a 15-way D-type socket
  • Robust aluminium housing
  • Windows, MAC, Linux drivers
  • Supplied with a free trial copy of NextView 4
  • Supplied with programming examples in VB, C++ Delphi, .NET
  • Can be used with LabVIEW and Profilab Graphical Programming Software

The USB-AD14f is a professional but low cost USB based multifunction I/O unit with 16 analogue inputs, 1 analogue output, 4 digital inputs, one of which can be used a s a pulse counter and 4 digital outputs. Data can be acquired at up to 20kHz rate at 14-bit resolution. All I/O are presented via two D-type sockets, one 37-way analogue and one 15-way digital. The user can connect to this directly or optional expansion boards are available.

Drivers are available for Windows, MAC and Linux operating systems. The USB-AD14f is supplied with an Active-X component and comprehensive programming examples for use with most common programming languages. There are also VI for use with LabVIEW and there is a USB-AD14f component ion the ProfiLab programming package.

The USB-AD14f is supported by NextView 4, the software for data acquisition and analysis. A fully functional 30-day trial is included with delivery to directly test the functionality of the USB-AD.

Optional Software

RealView

RealView is a Windows data logging and chart recorder application, which records and plots measured values from analogue hardware devices in real-time. Several curves can be plotted into a single chart. Several charts can be arranged on one or more pages if necessary. Plot options like pen width or pen colour can be altered to suit. Chart screen shots can be captured, charts printed with annotations and raw data can be exported to Excel.

More Information >>



Profilab

ProfiLab Expert is a low cost graphical programming software package for data acquisition and control applications. No programing experience is needed, programs are written by connecting function blocks together with wires. Professional user panels can be designed with custom controls, and the whole program can be compiled into a stand-alone executable file, with no run-time penalties.

More Information >>



NextView 4 -Data Acquisition Software

NextView-4 is a Windows data logging and control application for use with the BMC range of data acquisition units. The Lite version is for use with a single DAQ unit whilst the Pro version is for use with a multiple DAQ units. With NextView4 you can view data in numeric and chart recorder formats, log data to a CSV file, add buttons, sliders and automate your data acquisition task.

More Information >>



NextView4-Pro Data Acquisition Software







Downloads

User Manual >>

Software Downloads >>
