LabJack U6-OEM - LabJack U6 OEM PCB only

LabJack U6-OEM - LabJack U6 OEM PCB only
Zoom  Zoom
Our Price:  £219.00(£262.80 Inc. VAT)

Analogue Inputs:  14
Analogue Outputs:  2
Digital Inputs:  20
Digital Outputs:  20

Availability:

Incoming, 1 days

Incoming, 1 days

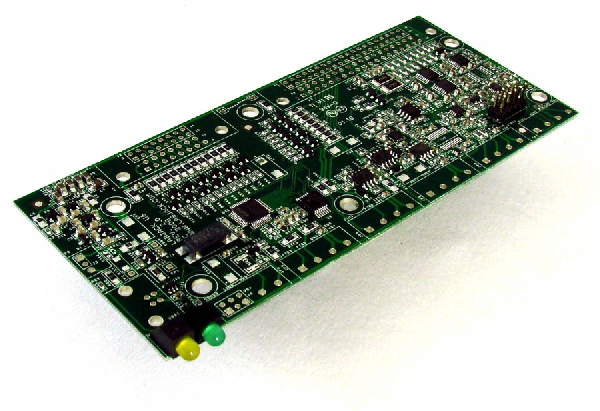

OEM version of the U6. Most through-hole components are not installed, making the U6-OEM very flexible. Ships with the board only. All documentation, drivers, and examples are available online. DAQFactory Express is not included.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 14 Analogue Inputs (16-18+ Bits Depending on Speed)
  • Single-Ended Inputs (14) or Differential Inputs (7)
  • Expandable to 80 single ended or 40 differential with the Mux80 Card >>
  • Instrumentation Amplifier Inputs - software Programmable Gains of x1, x10, and x100
  • Analogue Input Ranges of ±10, ±1, and ±0.1 Volts
  • Built-In CJC Temperature Sensor for themocouples
  • 2 Fixed Current Outputs (200/10 uA)
  • 2 Analogue Outputs (12-Bit, 0-5 Volts)
  • 20 Digital I/O
  • Up to 2 Counters (32 Bits Each)
  • Up to 4 Timers (Pulse Timing, PWM Output, Quadrature Input, ...)
  • Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
  • Supports Software or Hardware Timed Acquisition
  • Maximum Input Stream Rate of 50 kHz (Depending on Resolution)
  • Capable of Command/Response Times Less Than 1 Millisecond
  • USB 2.0/1.1 Full Speed Interface
  • Powered by USB Cable
  • Drivers Available for Windows, Linux, Mac and Pocket PC
  • Examples Available for C/C++, VB, LabVIEW, Python, and More
  • DAQFactory Express Software
  • Rated for Industrial Temp Range (-40 to +85 °C)

Please see the main LabJack U6 page for more details >>


Downloads

All U6 Downloads >>

Download DAQFactory Express >>
