Digital Inputs: 8Pulse Counter Inputs: 8
5 in stock, immediate despatch

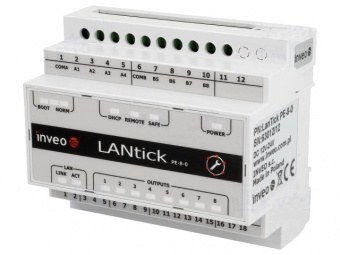

The LanTick PE-0-8 is a Ethernet Web controlled digital IO unit with 8 opto-isolated inputs with pulse counting capabilities. Users can monitor the inputs from any web enabled device or using the Android App. A free cloud service simplifies remote internet access without the need for fixed IP addresses or router port forwarding knowledge. The unit also supports SNMP for IT users, Modbus/TCP for industrial users and KNX/IP protocol for home automation users.
The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.
Own Background Image
Upload your own background image - overlay relay controls and input state LEDs. it is also possible to upload 2 images, the displayed image depending upon the state of the digital inputs.
Free Cloud Service
AUse the free cloud service to control your LanTick-Pro devices from anywhere in the world over the Internet. No need for a fixed IP address or knowledge of router port-forwarding.
Direct connection between modules (bridge connection)
The LanTick Pro can be configured in a bridge connection where the digital inputs on one device control the relay outputs on another.
The LanTickPro is equipped with a service protocol compatible with KNX-IP Routing mode. This protocol is designed to control home automation ( "smart homes") and office space. KNX uses a broadcast topology so that it is possible for a single input to activate multiple outputs. Advanced home automation features such as shutter control is included.
LanTick Logger Application
LanTick Data Logger application which enables monitoring, stored in a CSV format and send via e-mail inputs and outputs states.
It is possible to control multiple LanTick Pro devices from the dedicated android App
User Manual >>
Search Utility >>
LanTick Logger Application >>
