CHA-070PR - 7" Colour HMI with RS232, Modbus Comms

NEW
CHA-070PR - 7'' Colour HMI with RS232, Modbus Comms
Zoom  Zoom
Our Price:  £199.00(£238.80 Inc. VAT)

Availability:

Special order, 7-21 days

Special order, 7-21 days

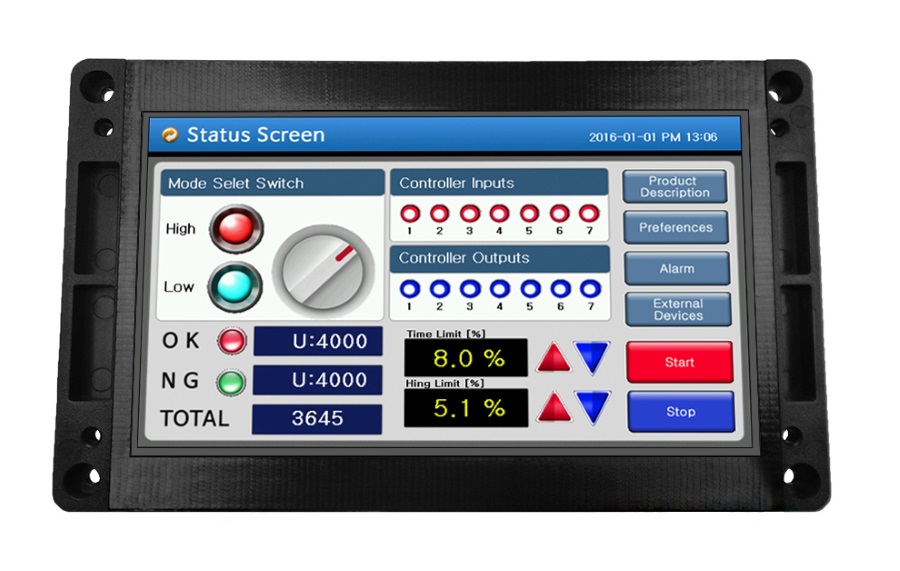

The CHA-070PR is a 7" LCD colour HMI for interfacing with Cubloc and other PLC's talking Modbus communication protocol via its single RS232 port. Programmed with a free WYSIWYG HMI editor, the CHA-043PR make an excellent low-cost operator interface for small PLC and microcontroller projects.


  • 7" wide colour TFT display
  • 480 x 272 pixel, 65536 colours
  • Resistive touch screen
  • microSD card support for additional memory (Included with purchase)
  • 1 x RS232
  • Supports MODBUS protocol
  • Buzzer
  • Real time clock: Yes, but no backup battery
  • Case: Open-frame
  • Power: 12-24VDC
  • Dimensions : 196 x 117 x 24.5mm (Panel Cutout Drawing >>)

Free HMI Editor Software

  • User Screens
  • Variables and Expressions
  • Fonts (Multilingual Text)
  • Widgets
    • Control Button
    • Screen Transition Button
    • Multi-action Button
    • Numeric Input
    • Lamp
    • Toggle Switch
    • Number
    • Text
    • Date and Time
    • Text Builder
    • Keypad
  • Shapes and Graphics
    • Lines, Rectangles, and Ellipses
    • Grid
    • Title Bar
    • Image
    • Dynamic Image
  • Events and Actions
    • Global Events
    • Screen Events

Downloads

Users Manual >>

ComfileHMI Editor Software >>

CAD Drawing >>
