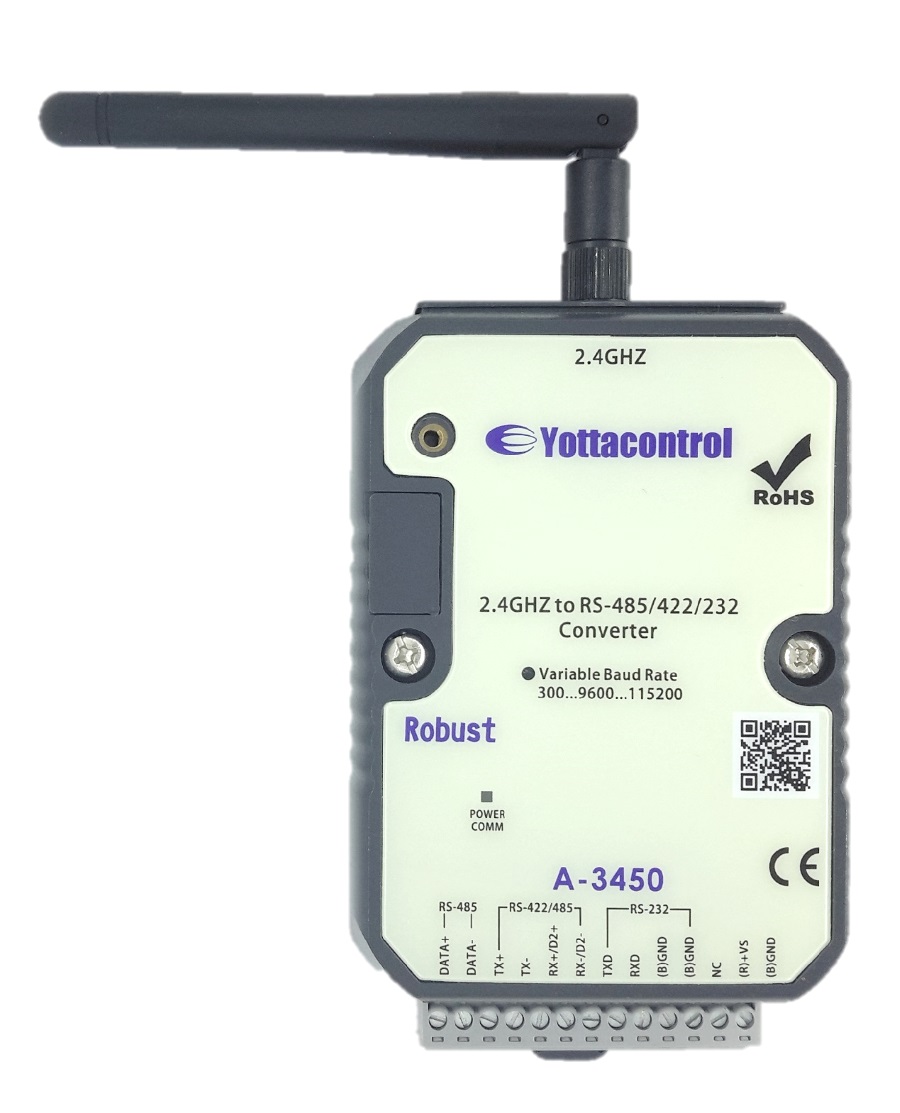

A-3450 Isolated Wifi to RS-232, RS-422, RS-485 Converter

A-3450 Isolated Wifi to RS-232, RS-422, RS-485 Converter
  Zoom
Our Price:  £69.00(£82.80 Inc. VAT)
+

Availability:



1 in stock, immediate despatch

The A-3450 is an isolated Wifi to RS232, RS422 or RS485 converter with automatic RS485 flow control, automatic switching between Rs422 and RS485 and automatic baud rate selection. Features a minimum of 3000 VDC isolation protection and transient suppression on the RS-485 data lines for use in the harshest industrial environments.


  • Isolated Wifi to RS-232, RS-422, RS-485 Converter
  • Automatic Direction Flow Control On RS-485
  • Screw terminals for RS232, RS422 and RS485
  • Support Full(4-Wire)/Half-Duplex Communication.
  • Minimum 3000 VDC Isolation Protection
  • Auto Switching For RS-232 To RS-422 Or RS-485
  • Auto Switching Baud Rate 300~115200bps
  • Max. 1,200 m for speed 9.6 K bps; Max. 400 m for speed 115.2 K bp
  • Maximum of 256 devices (Without repeater)
  • 2.4GHz ISM frequency range
  • Supplied with 50 ohm SMA antenna
  • DIN rail mount included
  • Power: 10-30VDC @ 0.5W
  • Operating Temperature: -20°C to 75°C

Downloads

User Manual >>
