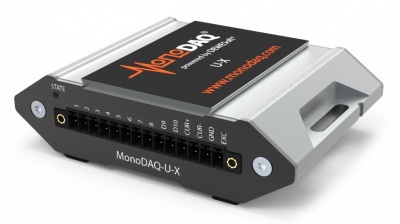

The MonoDAQ-U-X USB DAQ device features 8 flexible IO that can be configured for voltage or 4-20mA inputs, Thermocouples, strain gauge or pressure sensor brides or PT100 inputs, digital outputs with PWM support or high speed digital inputs. There is also dedicated serial IO pins supporting UART, 1-wire and I2C protocols and sensor excitation is available from another dedicated output. The free included DEWESoft software allows for a complete data acquisition system straight out of the box with acquisition rates of up to 50kHz.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Multifunction DAQ Device with 8 analogue and digital IO lines
  • 4 differential or 8 single ended voltage inputs
    • 8 × single ended input (2 V or  ±100 mV)
    • 4 × single ended buffered (±10 V)
    • 4 × differential input (±2 V)
    • 2 × differential buffered input (±10 V,)
  • 2 Speed Versions;
    • MonoDAQ-U-X-1  -  Sampling rate: 1kHz  (16 bit), max. resolution 20 bit (100 S/s)
    • MonoDAQ-U-X-50  -  Sampling rate:  50kS/s (16 bit), max. resolution 20 bit (100 S/s)
  • Can connect up to 2 full bridge strain gauges
  • Can connect up to 4 thermocouples - J, K, E, T, N, R, S, type with ±2°C accuracy
  • Current input with internal shunt (0.5 ohm, 1k ohm)
  • 1 x RTD input - type PT100
  • 1 x Analogue output (0-4V, 12bit)
  • Max. 8 digital inputs or outputs
  • dedicated 1 wire, I2C and UART interface on front connector
  • Power supply or excitation voltage output;
    • low-noise excitation voltage (2V, 3.3V, 5V, 10V and 24 V)
    • or an adjustable power supply 1.2 to 24 V @ 200mA
  • Internal temperature and humidity sensor
  • Internal IMU (3-axial acceletometer and 3-axial gyroscope)

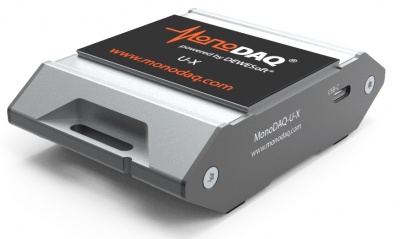

  • USB-C Connector
  • Power and signal isolation between USB and front end
  • Synchronization between up to 16 devices via USB hub
  • Dimensions 95.5 × 67.3 × 27.8 mm

The MonoDAQ-U-X Universal DAQ can be a 1-channel strain gauge amplifier, 4-channel thermocouple interface or 8-channel voltage input with a single click of a button in DEWESoft data acquisition software. Analogue and digital I/O’s coupled with Python API’s enable MonoDAQ-U-X USB Data Acquisition device (USB DAQ) to be used in basic control & automation applications.

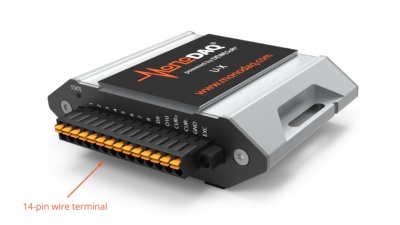

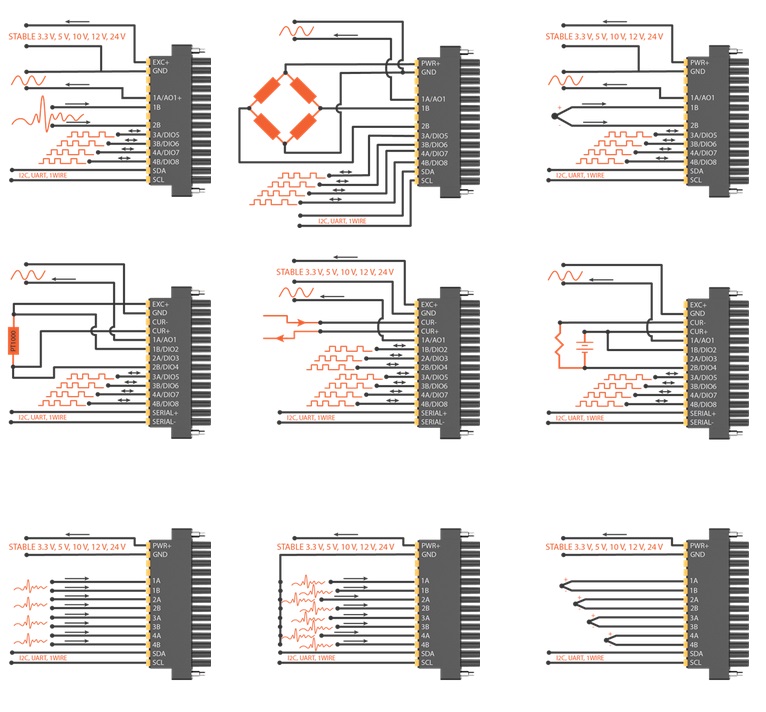

Typical Configurations

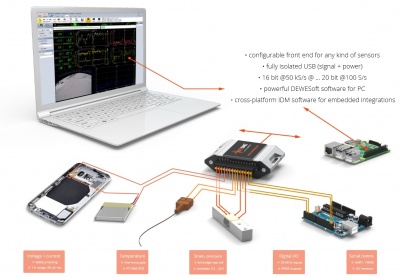

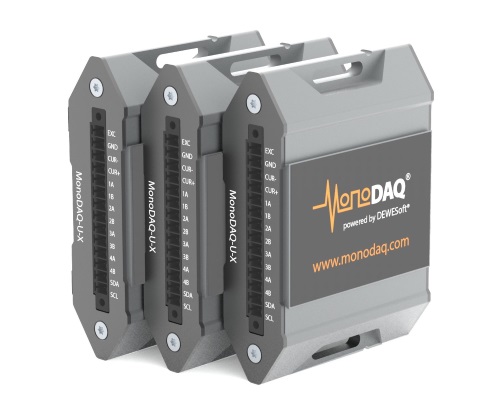

Multiple MonoDAQs can be hooked up to the same computer by using one or more suitable USB-C hubs.

Analogue output

The power supply or excitation output is either a low-noise (<1 µVRMS) excitation voltage (2, 3.3, 5, 10 and 24 V) or an adjustable power supply (1.2 … 24 V), and can provide up to 200 mA of current.

More sensors and capabilities

The MonoDAQ-U-X also contains a humidity and temperature sensor and a 6-axis inertial measurement unit (IMU). The digital port makes it possible to connect even more types of sensors. Its built-in 1-Wire capability not only allows the connection of those popular DS18B20 temperature sensors to the device, but it can also store configuration data inside 1-Wire EEPROMs a clever feature.

Software

An instrument like the MonoDAQ-U-X is not of much use without proper software, and this is where the product excels. It comes with a built-in LITE licence for DEWESoft, a powerful data acquisition, processing and visualization tool.

DEWESoft features all sorts of data analysis tools that can be used in real time on the incoming data. The user can design his/her own user interface with various graphs. All that is required are a few mouse clicks. If the predefined functions are not suitable, mathematical equations can be entered and executed as well. Data can be recorded and exported to all sorts of file formats to allow further analysis and treatment in the tool of your choice. Besides recording data DEWESoft can also record video allowing to visually link data to events.

Features

  • time domain recorder
  • XY recorder
  • FFT recorderscope
  • triggered storing
  • GPS
  • video
  • statistics (RMS, peak-peak, STDV etc.)
  • IIR-, FIR-filters
  • integration, derivation
  • vector analysis
  • export to Excel, Matlab, Flexpro

Java + Python = Raspberry Pi

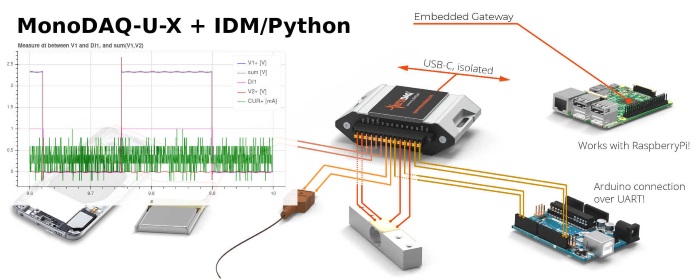

Even though DEWESoft would be the preferred tool for most users, it may not be suitable in all situations. Platforms supporting Java (including Windows) can use the Isotel DAQ & Metering (IDM) tool — a Java-based configuration and recording software package — that will even run on Raspberry Pi and Android smartphones. IDM allows the MonoDAQ-U-X to be controlled in Python.



Downloads

MonoDaq Datasheet >>

Technical Drawing >>

DEWESoft Software 32-bit >>

DEWESoft Software 64-bit >>

Isotel IDM software and Documentation >>
