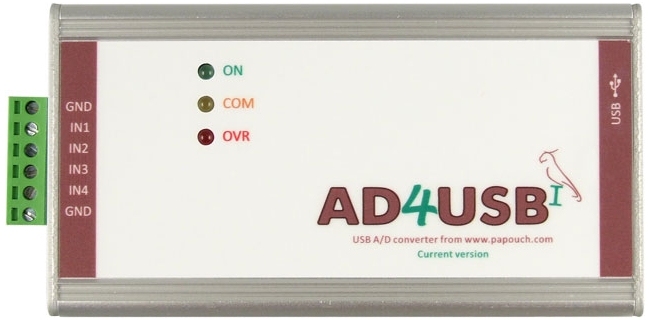

AD4USB - USB Analogue Input unit with Modbus

Zoom

Our Price:  £168.00(£201.60 Inc. VAT) –+ Add to Basket Notify me when this item is available Input Type:   0-10V0-20mA Add DIN Rail Clip:    + £8.00 Analogue Inputs:  4 Availability:      Incoming, 1-2 days Share Tweet The AD4USB is a 4-channel USB analogue input/alarm unit which talks ASCII or Modbus protocols over a virtual serial port. Availabe with voltage or 0-20mA inputs (selected when ordering). Free Wix data logging/charting software also available.

• 4 single-ended analogue inputs at 16-bits
• 0-10V or 0(4)-20mA input ranges selected when ordering
• Sampling rate: 2 Samples/Sec
• Two measuring modes:
  o  Single measurement – sends one measured value from each input upon a request.
  o  Continuous measuring – measures all inputs in the set interval and regularly sends the
  measured values via the communication line.
• Isolation between inputs and USB
• Powered from USB port
• Free Windows Wix software package for charting, displaying and data logging - send email and SMS alarm messages (SMS requires GSM MODEM)

Downloads

User Manual >>

Modbus Communications >>

ASCII Communications >>

Setup Software >>

USB Driver >>

WIX Data Logging Software >>
