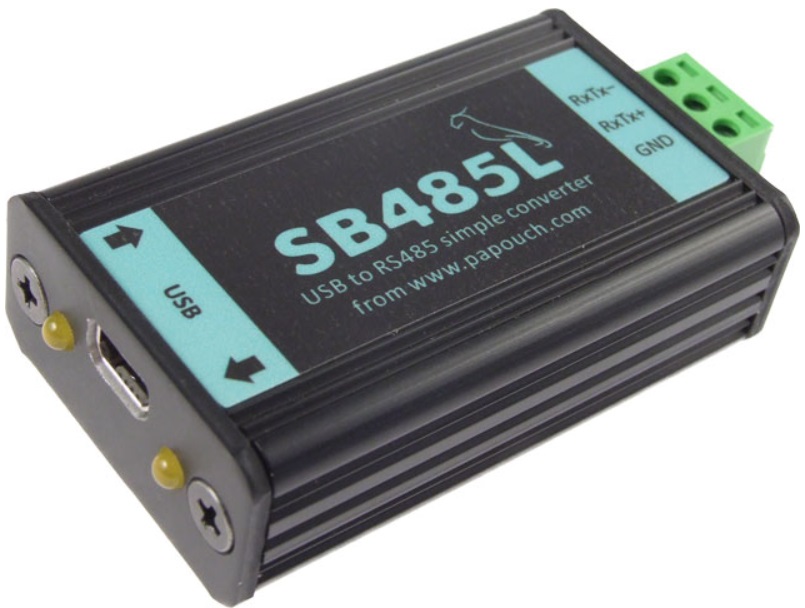

SB485L - Budget USB to RS485 converter

SB485L - Budget USB to RS485 converter
 SB485L - Budget USB to RS485 converterSB485L - Budget USB to RS485 converter
Our Price:  £62.00(£74.40 Inc. VAT)



Incoming, 1-2 days

Basic USB to RS485 serial converter. The SB485 is a self-contained unit, obtaining it's power from the USB port. Industrial grade with 3kV opto-isolation and internal high-speed transient suppressors on each data line to protect from dangerous voltages levels or spikes. Supplied with virtual serial port software to mimic a traditional serial port for use with legacy software.

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Conversion of USB to RS485
  • Access to the serial line via a virtual serial port
  • Automatic data flow switching without delay
  • Galvanic isolation of USB from the serial line
  • Data transfer rate up to 230kb/s
  • Supported operating systems: Windows 32bit as well as 64bit, Linux, MAC OS, Android
  • Mini-USB cable included in the delivery
  • Powered from USB
  • Operating temperature range -40 to +85 °C.
  • A separate LED for each direction of data flow



User Manual >>

Drivers >>
