1 in stock, immediate despatch

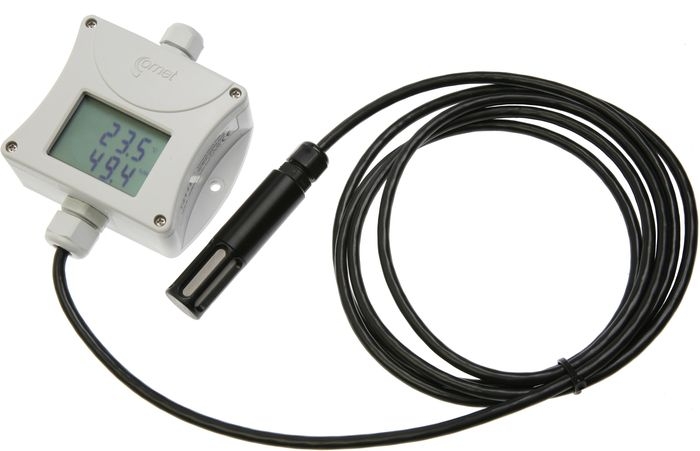

Built-in relative humidity, temperature, atmospheric pressure sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. Supports MODBUS RTU and ASCII ADAM-4000 compatible communications protocol.
Measured values are converted to RS232 serial output.
Serial output RS232 - transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200Bd.
User Manual >>
TSensor Configuration Software >>
SensorReader Datalogging Software >>
