T0310 Temperature RS232 probe

T0310 Temperature RS232 probe
T0310 Temperature RS232 probeT0310 Temperature RS232 probeT0310 Temperature RS232 probe
Our Price:  £117.00(£140.40 Inc. VAT)



Special order, 5-10 day despatch

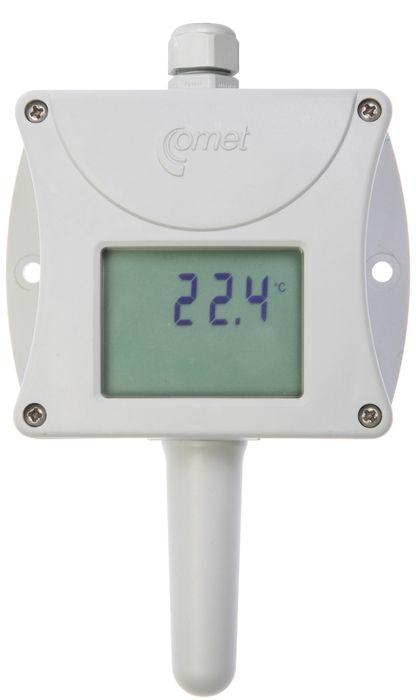

Ambient temperature transmitter. Outdoor, indoor use.

Temperature sensor is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and fail indication.

  • Output: RS232
  • Measured Value: Temperature
  • Construction Type: Ambient Air
  • Design:    Industrial
  • Temperature Measuring Range: -30 to +80°C
  • Lcd Display
  • Accuracy of temperature output:    ±0.4°C
  • Available temperature units: degrees Celsius, Fahrenheit
  • Temperature operating range: -30 to +80°C
  • Temperature operating range of LCD display: readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C
  • Communication protocol:    ModBus RTU and Advantech ADAM compatible protocol
  • Communication speed: 110 to 115200 Bd
  • Free program TSensor for configuring of the transmitter is ready to Download
  • Free program SensorReader for logging values from one transmitter to a PC disk file is ready to Download
  • IP protection: IP65
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 220g

Measured temperature values are converted to RS232 serial output.

Serial output RS232 - transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200Bd.


User Manual >>

TSensor Configuration Software >>

SensorReader Datalogging Software >>
