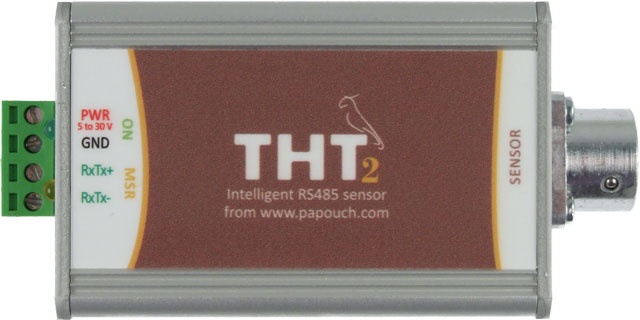

THT2 - MODBUS RS485 Temperature and/or Humidity Sensor

THT2 - MODBUS RS485 Temperature and/or Humidity Sensor
  Zoom
THT2 - MODBUS RS485 Temperature and/or Humidity SensorTHT2 - MODBUS RS485 Temperature and/or Humidity SensorTHT2 - MODBUS RS485 Temperature and/or Humidity Sensor
Our Price:  £77.00(£92.40 Inc. VAT)
+


Add DIN Rail Clip:

Temperature Inputs:  1
Humidity Inputs:  1

Availability:



3 in stock, immediate despatch

THT2  is an intelligent  hygrometer and thermometer.  It measures  humidity  directly in percentage and  temperature  in degrees Celsius. It uses an external sensor connected via a cable.  Values in digital format are made available via the RS485 communication line in MODBUS format.

Sensors ordered seperately in 1m, 5m and 10m cable lengths


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Measures temperature in range -40°C to +125 °C (with proper sensor connected)
  • Measures relative humidity in range 0 % to 100 % (with proper sensor connected)
  • Calculates dew point
  • Calulates temperatures in several units (°C, °F, K)
  • THT2 saves maximum and minimum measured-out value of each quantity
  • Compatible sensors: temperature and humidity or temperature only (sensor is sold separately)
  • Communication line RS485 - up to 32 devices can be connected on a single bus (even more when a repeater is used)
  • ModBus RTU protocols supported
  • NEW - TME-Multi adds a Web Interface for up to 32 THT2's
  • 5-30V DC power - low power requirements (typically 2 mA)
  • Dimensions - 42mm × 24mm × 72mm

 THT2  is an intelligent  hygrometer and thermometer.  It measures  humidity  directly in percentage and  temperature  in degrees Celsius.  Also, it is able to combine both values to calculate the dew point.  It uses an external sensor connected via a cable.  It is possible to connect either an  integrated temperature and humidity sensor  or just a  separate temperature sensor  (see below). Values in digital format are made available via the RS485 communication line.

THT2 has low consumption –  it is easy to create a network of these devices connected via a single four-wire cable (RS485 + power supply) ranging up to 1200 metres.

Wix - FREE Powerful datalogging, charting and alarming software



  • Display of numeric values.
  • Viewing the colour column (ie bar graph) with colour according to the current value.
  • View the text of the current value.
  • View the chart - add several charts, add channels to a single chart
  • Datalogging - Save the history of measurement in a text file for further processing or evaluation.
  • Wix can monitor inputs against pre-set alarm limits;
    • Send alarm e-mail
    • Switching on output (relay) to Quido
    • Reset the counter (counter) input Quido
    • Send alarm text message by SMS (requires GSM MODEM)


Downloads

User Manual >>

Modbus Manual >>

Modbus Configurator >>

Wix Software Download >>
