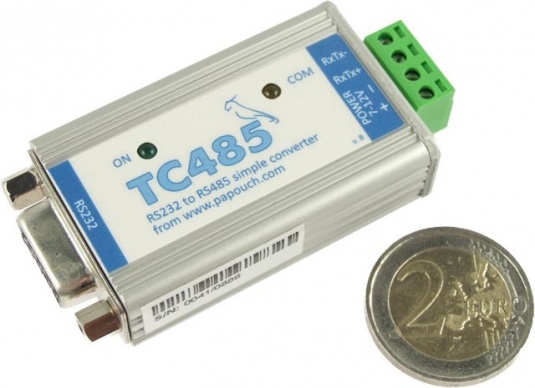

TC485: RS232 to RS485 converter

TC485: RS232 to RS485 converter
  Zoom
TC485: RS232 to RS485 converterTC485: RS232 to RS485 converterTC485: RS232 to RS485 converter
Our Price:  £41.00(£49.20 Inc. VAT)
+

Availability:



Incoming, 1-2 days

TC485 is a simple bidirectional converter of RS232 line to RS485 bus specifically designed to be used with intelligent sensors TQS and THT2 (thermometers, hygrometers, simple I/O).


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

TC485 is a simple bidirectional converter of RS232 line to RS485 bus specifically designed to be used with intelligent sensors TQS and THT2. Galvanically isolated RS232 side is only powered via RTS signal from RS232, RS485 side is powered from an external power supply. RS232 line is connected via D-SUB9 connector on the side of the TC485. RS232 is connected to a PC using straight 1:1 cable. RS485 Bus is on a slip-on terminal. TC485 automatically switches the communication direction.

For any more complicated applications where TC485 is unusable, you can use UC485 converter instead which has a variety of settings for RS232, RS485 and RS422 / RS422 Multi-master lines.

Features of TC485 converter

  • Converter for TQS thermometer / hygrometer system.
  • Galvanically isolated RS485 line from RS232 line.
  • Automatic direction control on RS485.
  • Power ON indicator.
  • Power supply range DC 7 to 12 V (reverse polarity protection).
  • Power supply is not included.
  • RS232 line with surge protection
  • No setup needed
  • Rugged industrial make in a metal enclosure

 Block diagram of TC485
