MOD-1TE - Mini RS485 Modbus 1 Thermocouple or RTD Input, 1 Digital Output RTU
MOD-1TE - Mini RS485 Modbus 1 Thermocouple or RTD Input, 1 Digital Output RTU
Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

MOD-1TE - Mini RS485 Modbus 1 Thermocouple or RTD Input, 1 Digital Output RTU

£86.00
(£103.20 Inc. VAT)
Add Mini USB Cable 2m
1 in stock, immediate despatch
+

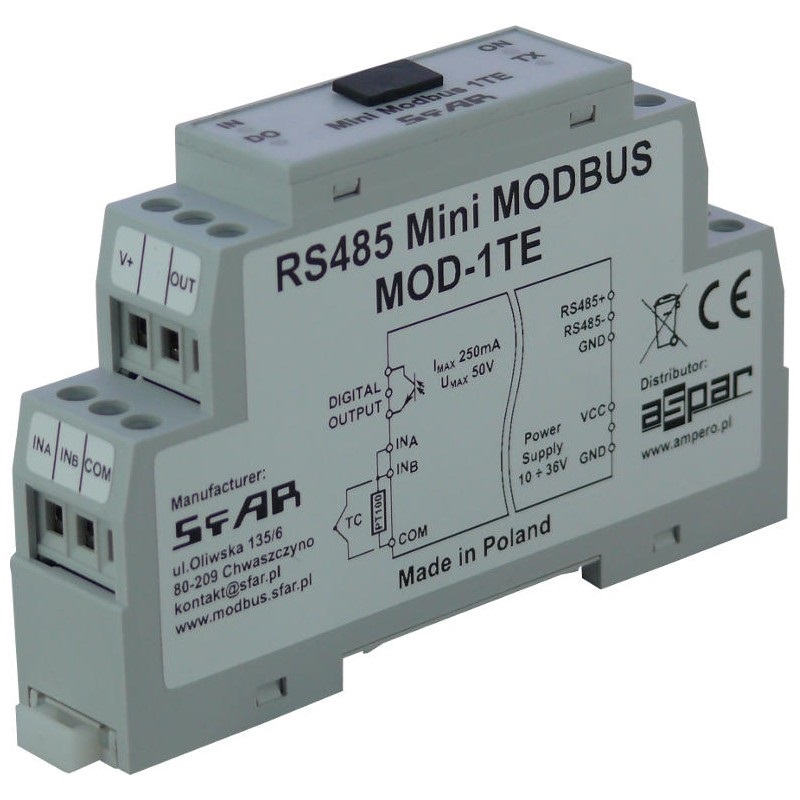

The MODBUS-Mini range is a cost effective solution when only a small number of IO are required. The MOD-1TE can accept 1 x thermocouple or Resistance thermometer input. The unit also has a digital output than be set to activate when temperature alarm limits are exceeded. Communicates via Modbus ASCII or RTU. Programmed via USB connection.

  • 1 input for the temperature sensor
  • Supports all popular resistive thermometers: PT100, PT500, PT1000, NI100, KTY81-110 ( 2 and 3- wire)
  • Support all popular thermocouple thermometers: J, K, T, N, S, R, B
  • Cold junction temperature measurement
  • Measurement resolution 0.1°C (depends from used temperature sensor)
  • It is possible to measure the resistance to 8000 Ω
  • It is possible to measure voltages in the range 256mV (10μV resolution) and to 2048mV (100μV resolution
  • 1 digital output PNP or NPN types, 250mA @55V
  • Digital output can be set when temperature alarm limits are exceeded
  • RS485 - Modbus settavble to ASCII or RTU
  • Baud rate from 2400 to 115200
  • USB programming port - free software
  • Supply voltage: 10-36 VDC; 20-28VAC
  • Supply Current: 70 mA @ 12V / 38 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Dimensions: 90mm x 56mm x 17mm
  • Operating Temperature: -20 °C - +65°C

The MOD-1TE module allows you to measure the temperature with attached popular sensor Pt100, Pt500, Pt1000, Ni100, KTY81-110, NTC (Carel) and thermocouple (type J, K, T, N, S, R, B). In addition, it is possible to measure voltages in the range 256mV (10μV resolution) and to 2048mV (100μV resolution) as well as the measurement of resistance to 8kΩ. The device has a one input for the temperature measurement. It is possible to 2- or 3-wire measurement of sensors Pt100, Ni100, Pt500, Pt1000 and 2-wire measurement thermocouples and other sensors.

The module is equipped in one configurable digital output PNP or NPN type. Digital output is activated when the value exceeds the setpoint or  drops below the setpoint..This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.




Downloads

User Manual >>

Config Software >>

Digital Outputs
1
Temperature Inputs
1
Customer Reviews
Write a Review and share your opinions!
1 Review:

Solid Modbus RTU
Rating:
08 September 2021  |  Andrew

Works exactly as described.

The configuration software is easy to use and allows you to read/write the device data in real-time independently via USB whilst module is connected to RS-485 which makes debugging much easier.

Low profile and great value for money.


Was this helpful to you?  Yes  /  No
