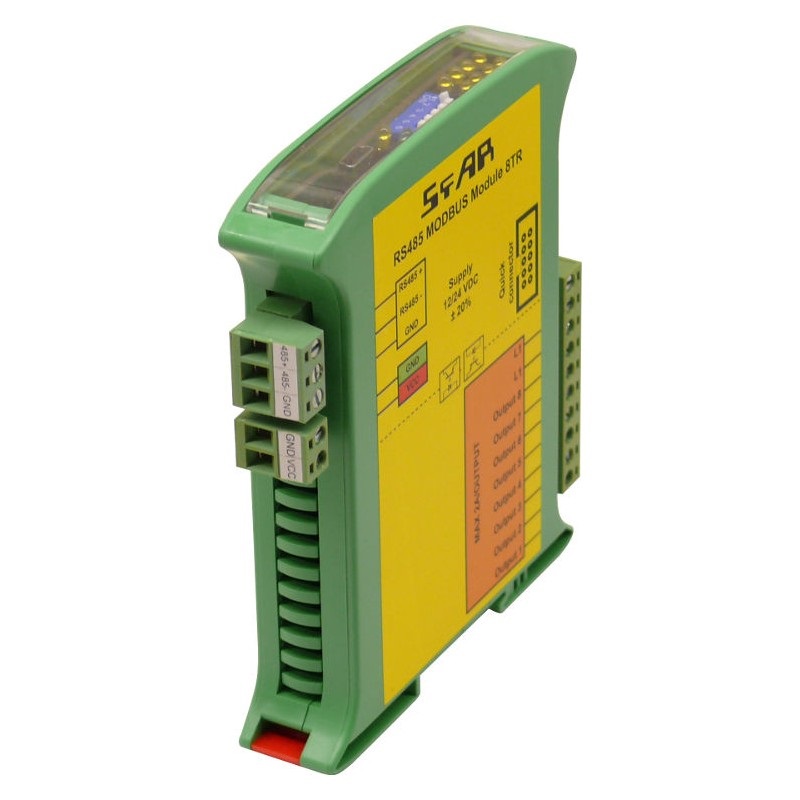

MOD-8TR - RS485 Modbus 8 Mains Solid State Relay Output RTU

MOD-8TR - RS485 Modbus 8 Mains Solid State Relay Output RTU
 MOD-8TR - RS485 Modbus 8 Mains Solid State Relay Output RTUMOD-8TR - RS485 Modbus 8 Mains Solid State Relay Output RTU
Our Price:  £120.00(£144.00 Inc. VAT)
Add Mini USB Cable 2m:

Digital Outputs:  8



1 in stock, immediate despatch

The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-8TR has 8 Mains-rated Triac-based solid state relay (SSR) outputs capable of switching 0.5A at 400VAC. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 8 Opto-isolated Triac-based Solid State Relay outputs
  • Rated: 0.5A @ up to  400VAC
  • RS485 - Modbus settavble to ASCII or RTU
  • Baud rate from 2400 to 115200
  • DIP Switch for address setting
  • USB programming port - free software
  • Supply voltage: 12-24 V DC ± 20%
  • Supply Current: 200 mA @ 12V / 150 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Ribbon connector for module-to-module connection
  • Dimensions: 120mm x 101mm x 22mm
  • Operating Temperature: -10 °C - +50°C

The MOD-8TR  has 8 mains Solid State Relay outputs rated at up to 0.5A @ 400VAC. Each channel can be individually configured in one of several modes.This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol.

The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.



User Manual >>

Config Software >>
