MOD-8AI - RS485 Modbus 8 Analogue Inputs Volts, 4-20mA RTU
MOD-8AI - RS485 Modbus 8 Analogue Inputs Volts, 4-20mA RTU
MOD-8AI - RS485 Modbus 8 Analogue Inputs Volts, 4-20mA RTU
Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

MOD-8AI - RS485 Modbus 8 Analogue Inputs Volts, 4-20mA RTU

£148.00
(£177.60 Inc. VAT)
Add Mini USB Cable 2m
Incoming, expected 06/12/2024
+

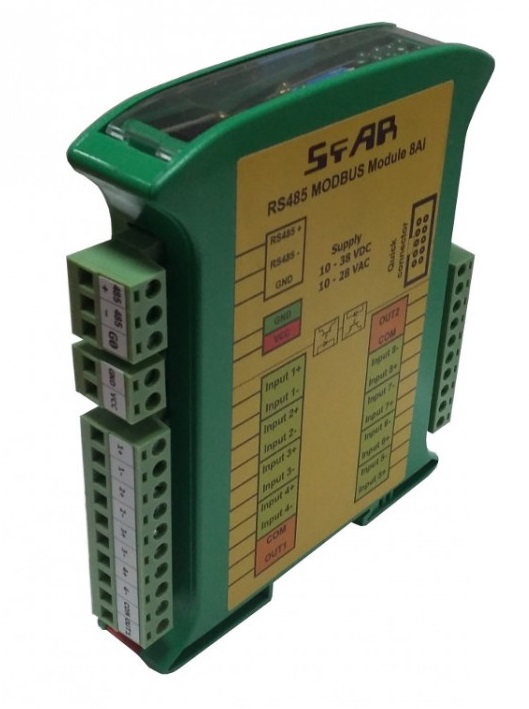

The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-8AI has 8 analogue inputs that can accept both volts and 4-20mA current loop inputs. The units also has 2 transistor outputs that can be activated when analogue inputs exceed alarm thresholds. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

  • 8 analogue inputs
    • voltage input range: 0-10VDC; ±10VDC, 0-1VDC; ±1VDC
    • current input range: 0~20mA, 4-20mA, -20~+20mA
  • Measurement resolution: 14 bits
  • ADC processing time: 16ms / channel
  • 2 x configurable NPN outputs
  • Can switch up to 55V @ 500mA
  • Switched remotely or automatically when the set value is exceeded
  • RS485 - Modbus settable to ASCII or RTU
  • Baud rate from 2400 to 115200
  • DIP Switch for address setting
  • USB programming port - free software
  • Supply voltage: 12-24 V DC ± 20%
  • Supply Current: 120 mA @ 12V / 100 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Ribbon connector for module-to-module connection
  • Dimensions: 120mm x 101mm x 22mm
  • Operating Temperature: -20 °C - +65°C

The MOD-8AI has 8 analogue inputs that can accept both volts and 4-20mA current loop inputs. The units also has 2 transistor outputs that can be activated when analogue inputs exceed alarm thresholds. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol.

The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.




Downloads

 User Manual:  https://www.aspar.com.pl/katalogi//IOMODULES/8AI_en.pdf

Config Software: https://www.aspar.com.pl/katalogi/IOMODULES/KONFIGURATOR/software/Konfigurator%20IO.exe



Analogue Inputs
8
Digital Outputs
2
