MOD-6TE - RS485 Modbus 6 Thermocouple or RTD RTU

MOD-6TE - RS485 Modbus 6 Thermocouple or RTD  RTU
  Zoom

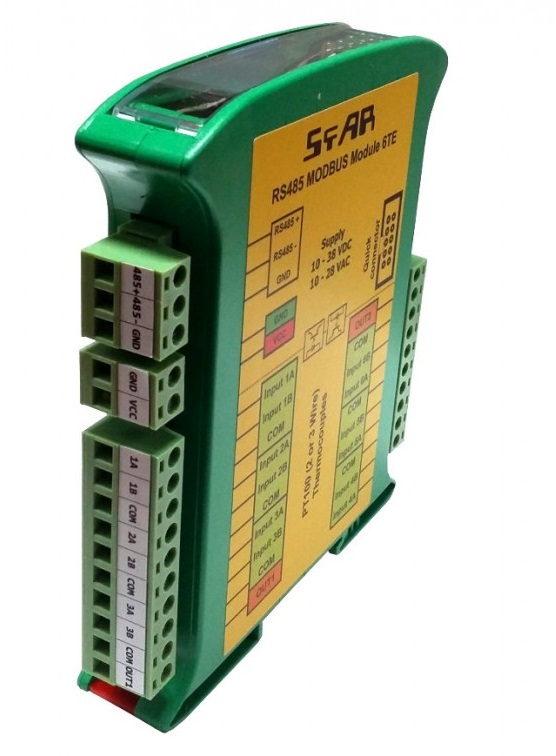

 MOD-6TE - RS485 Modbus 6 Thermocouple or RTD  RTUMOD-6TE - RS485 Modbus 6 Thermocouple or RTD  RTU
Our Price:  £162.00(£194.40 Inc. VAT)
+
Add Mini USB Cable 2m:

Digital Outputs:  2
Temperature Inputs:  6

Availability:



Incoming, expected 02/10/2024

The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-6TE accepts most popular RTD sensor and most common thermocouple types. The units also has 2 transistor outputs that can be activated when analogue inputs exceed alarm thresholds. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 6 inputs for the temperature sensor
  • Supports all popular resistive thermometers: PT100, PT500, PT1000, NI100, KTY81-110 ( 2 and 3- wire)
  • Supports all popular thermocouple thermometers: J, K, T, N, S, R, B
  • Cold junction temperature measurement
  • Measurement resolution 0.1°C (depends from used temperature sensor)
  • It is possible to measure the resistance to 8000 Ω
  • It is possible to measure voltages in the range 256mV (10μV resolution) and to 2048mV (100μV resolution)
  • 2 x configurable NPN outputs
  • Can switch up to 55V @ 500mA
  • Switched remotely or automatically when the set value is exceeded
  • RS485 - Modbus settavble to ASCII or RTU
  • Baud rate from 2400 to 115200
  • DIP Switch for address setting
  • USB programming port - free software
  • Supply voltage: 12-24 V DC ± 20%
  • Supply Current: 120 mA @ 12V / 100 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Ribbon connector for module-to-module connection
  • Dimensions: 120mm x 101mm x 22mm
  • Operating Temperature: -20 °C - +65°C

The MOD-6TE accepts most popular RTD sensor PT100, PT500, PT1000, Ni100, KTY81-110, NTC  and most common thermocouple types. The units also has 2 transistor outputs that can be activated when analogue inputs exceed alarm thresholdsCommunication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol.

The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.




Downloads

User Manual >>

Config Software >>
