Digital Outputs: 6
4 in stock, immediate despatch
The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-6RO has 6 Mains-rated change-over Relay Output. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

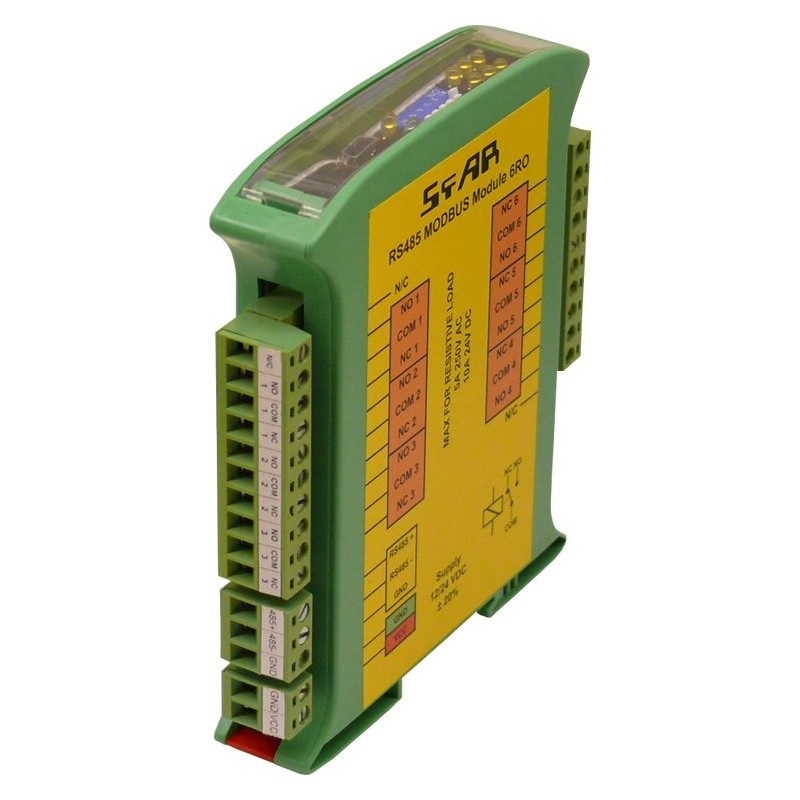

The MOD-6RO has 6 mains rated change-over Relay outputs rated at up to 10A @ 24VDC and 5A @ 250VAC Each channel can be individually configured in one of several modes.This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.
The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.
Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol.
The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.
