MOD-16I - RS485 Modbus 16 Channel Digital Input with Pulse Counting RTU

MOD-16I - RS485 Modbus 16 Channel Digital Input with Pulse Counting RTU
  Zoom
MOD-16I - RS485 Modbus 16 Channel Digital Input with Pulse Counting RTUMOD-16I - RS485 Modbus 16 Channel Digital Input with Pulse Counting RTUMOD-16I - RS485 Modbus 16 Channel Digital Input with Pulse Counting RTU
Our Price:  £120.00(£144.00 Inc. VAT)
+
Add Mini USB Cable 2m:

Digital Inputs:  16
Pulse Counter Inputs:  16

Availability:



4 in stock, immediate despatch

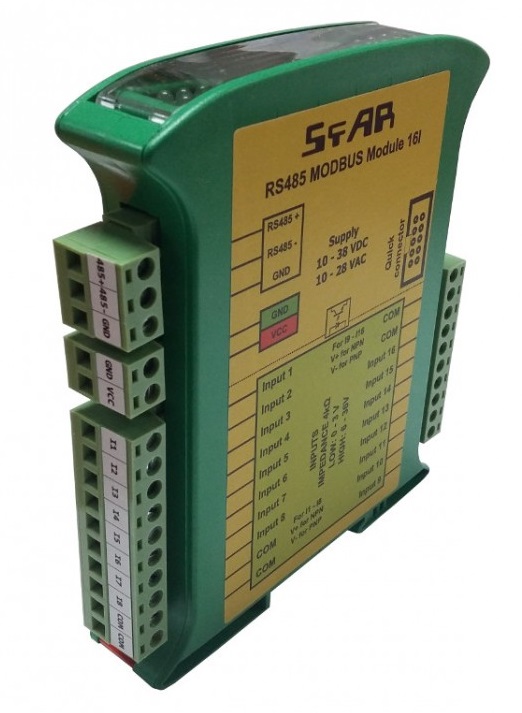

The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-16DI has 16 opto-isolated digital inputs with pulse counting and quadrature encoder support. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • 16 opto-isolated digital inputs
  • closed contact or digital input
  • logic low - 0-3V, logic high 6-36V
  • 16 configurable 32-bit counters - timers
  • 1 kHz max count rate
  • 2 quad encoder inputs
  • RS485 - Modbus settavble to ASCII or RTU
  • Baud rate from 2400 to 115200
  • DIP Switch for address setting
  • USB programming port - free software
  • Supply voltage: 12-24 V DC ± 20%
  • Supply Current: 60 mA @ 12V / 40 mA @ 24V
  • Up to 128 modules on RS485 network
  • DIN rail mount
  • Ribbon connector for module-to-module connection
  • Dimensions: 120mm x 101mm x 22mm
  • Operating Temperature: -10 °C - +50°C

The MOD-16DI has 16 digital inputs with configurable timer/counter option. In addition, terminals IN1 and IN2 and IN3 and IN4 can be used to connect two encoders. All inputs and outputs are isolated from the logic system by optocouplers. Each channel can be individually configured in one of several modes.This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol.

The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.
