BRIDGE_LR_PSDC

BRIDGE_LR_PSDC
  Zoom
Our Price:  £158.00(£189.60 Inc. VAT)
+

RS485 Ports:  1

Availability:



3 in stock, immediate despatch

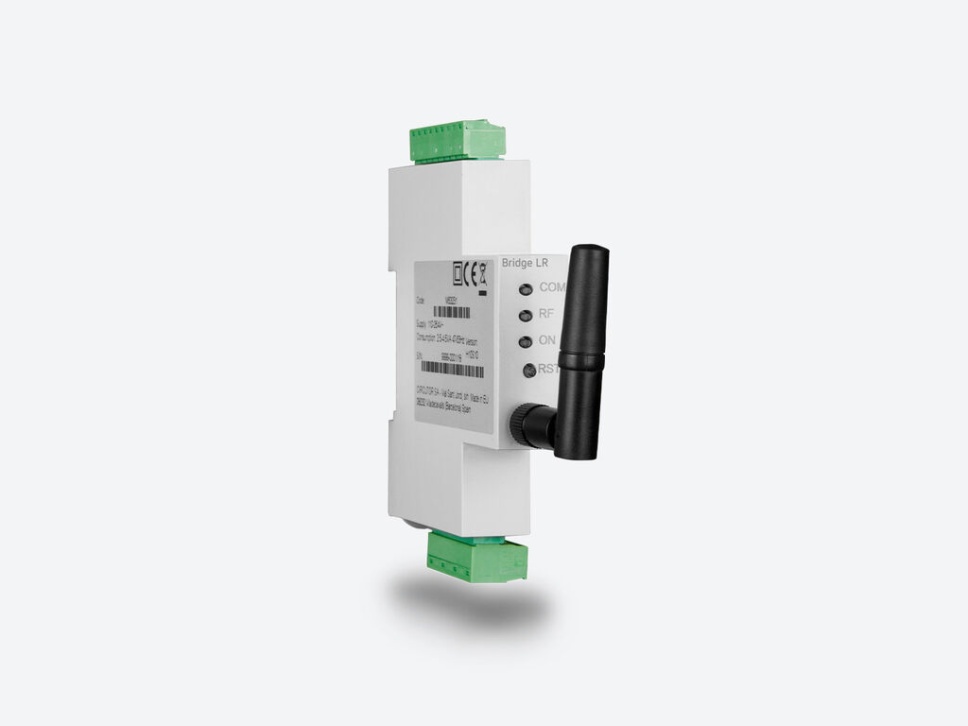

Bridge LR converts an RS-485 network to a wireless long range network LoRaTM. A system consists of a master bridge connected to a RS-485 master, and as many slave bridges as required. The communication between master and slaves is completely transparent to allow an easy installation. Bridge LR has a typical range of 1km indoor and 20km outdoor. 12VDC powered for remote battery applications.


  • Transparent communication with LoRaTM protocol
  • RS-485 2-wire
  • Serial interface
    • Type RS-485 three wires
    • Baud rate 9600 / 19200 / 38400 / 57600 / 115200 bps configurable
    • Data bits 8
    • Parity Without parity / Even configurable
    • Stop bits 1 / 2 configurable
  • Remote configuration
  • Status LEDs
  • External antenna
  • Manual reset
  • Input voltage: 12 Vdc ±10%
  • DIN rail installation
  • Unlimited number of sensors
  • LoRaTM communication up to 20000 meters at outside areas
  • LoRaTM communication up to 1000 meters at inside areas
  • Unit dimensions (Width x Height x Length) 18 x 70 x 109 mm
  • Temperature range -10 to +60ºC
  • Optional External Antenna

Bridge LR converts an RS-485 network to a wireless long range network LoRaTM. The device is completely configurable by the PC application, used to setup any parameter of RS-485 serial port or LoRaTM radio.

A typical setup consists of a Bridge LR connected to the RS-485 Modbus RTU master, and as many slave bridges as required, each can be connected to a unique RS485 network.  It is possible to connect up to 32 devices to each RS-485 bus.

The communication between master and slaves is completely transparent to allow for an easy installation. However, it is required to control the time between messages on transmission, and timeout time between Modbus master and final sensors. Recommended time for both parameters is 3 seconds.

Bridge LR standard maximum communication’s range are 1 km indoor and up to 20km of outdoor with direct line of sight.


Downloads

User Manual >>

Configuration Software >>
