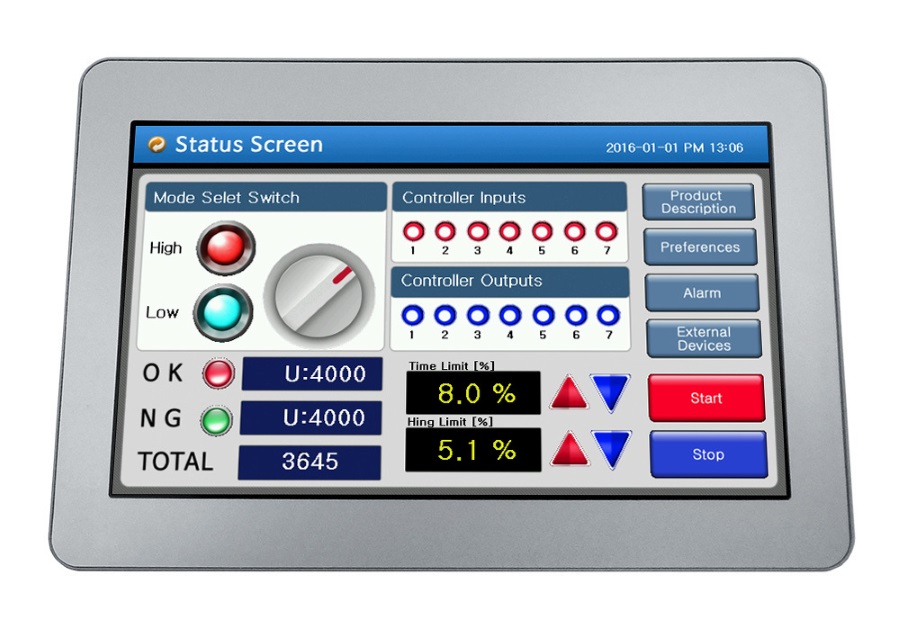

CHA-070WR - 7" Water-resistant Colour HMI with RS232, RS485, Modbus Comms

Zoom

Our Price:  £302.00(£362.40 Inc. VAT) –+ Add to Basket Availability:      5 in stock, immediate despatch Share Tweet The CHA-070WR is a 7" LCD HMI with a water resistant front panel for interfacing with Cubloc and other PLC's talking the Modbus communication protocol. Programmed with a free WYSIWYG HMI editor, the CHA-070WR make an excellent low-cost operator interface for small PLC and microcontroller projects. Features 2 x RS232, 1 x RS485 ports and Ethernet port.

• 7" wide colour TFT display
• 800 x 480 pixel, 65536 colours
• Resistive touch screen
• microSD card support for additional memory (Included with purchase)
• 2 x RS232
• 1 x RS485
• 1 x RJ45 Ethernet port - supports Modbus TCP
• Supports MODBUS RTU and TCP protocols
• Audio speaker
• Real time clock: Yes, with backup battery
• Case: Enclosed with water resistant front panel
• Power: 12-24VDC
• Dimensions : 187 x 124 x 45mm (Panel Cutout Image >>)

Free HMI Editor Software

• User Screens
• Variables and Expressions
• Fonts (Multilingual Text)
• Widgets
  • Control Button
  • Screen Transition Button
  • Multi-action Button
  • Numeric Input
  • Lamp
  • Toggle Switch
  • Number
  • Text
  • Trend Graph
  • Date and Time
  • Text Builder
  • Keypad
• Shapes and Graphics
  • Lines, Rectangles, and Ellipses
  • Grid
  • Title Bar
  • Image
  • Dynamic Image
• Events and Actions
  • Global Events
  • Screen Events

Downloads

Users Manual >>

ComfileHMI Editor Software >>

CAD Drawings >>
