TCG120 - GSM Remote Control Unit - Temperature, Digital IO, Analogue In

TCG120 - GSM Remote Control Unit - Temperature, Digital IO,  Analogue In
  Zoom
TCG120 - GSM Remote Control Unit - Temperature, Digital IO,  Analogue InTCG120 - GSM Remote Control Unit - Temperature, Digital IO,  Analogue InTCG120 - GSM Remote Control Unit - Temperature, Digital IO,  Analogue InTCG120 - GSM Remote Control Unit - Temperature, Digital IO,  Analogue In
Our Price:  £172.00(£206.40 Inc. VAT)
+
Add UK 12V DC Mains PSU:
Add EU 12V DC Mains PSU:
Add Mini USB Cable 2m:

Analogue Inputs:  2
Digital Inputs:  2
Digital Outputs:  2
Temperature Inputs:  4

Availability:



Special order, 7-10 day despatch

CURRENT DELIVERY LEAD TIME APPROX 6 MONTHS

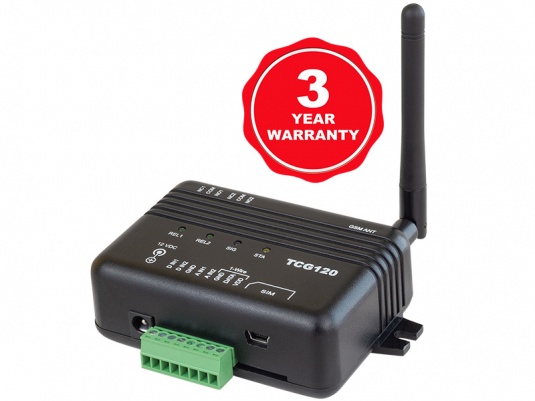

The TCG120 is a GSM/GPRS text message controlled IO unit with 2 digital inputs, 2 analogue inputs and a 1-wire interface to connect up to 4 temperature/humidity sensors. It also has 2 relays with normally open and normally close contacts.Text message alerts can be sent on input state change and the relays can be activated by SMS text message. The relays can also be activated by an input parameter exceeding a setpoint. The TCG120 may periodically send data to a remote server, which makes it suitable for use in client-server applications.


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Quad-bands GSM/GPRS connectivity
  • Setup via USB (Windows setup program) or SMS
  • 2 digital inputs with ” dry contact” and “logic level” modes
  • 2 analogue input with 0 to 60VDC range
  • 2 relay output with NO and NC contacts (3A, 30VAC, 24VDC)
  • Long 1-Wire support for up to 4 Teracom TSTxxx (temperature) and TSHxxx (temperature&humidity) sensors
  • SMS alarm alerts (up to 5 numbers)
  • Email alarm alerts (up to 5 email recipients), SMTP with SSL support
  • Single call control – the relays can be controlled with a single call from up to 100 numbers
  • Push mode – XML data is sent via HTTP post method to remote server
  • HTTP API commands
  • Firmware update over USB or GPRS
  • Supply voltage, VDC  8 - 32
  • Maximum current consumption (with both relays ON): 140mA @12VDC
  • Dimensions: 107mm x 72mm x 32mm

TCG120 is a micro-controller based device for monitoring and control via the GSM/GPRS network. It includes 2 digital inputs, 2 analog inputs, 1-Wire interface for up to 4 humidity and temperature sensors. It also has 2 relays with normally open and normally close contacts.

The relays can be activated either remotely (via SMS or HTTP API command) or locally – from status of monitored parameter. Only one parameter can manage the relay at the same time, but for every parameter can be sent e-mail or SMS for alert conditions.

The controller can be used as standalone device or as a part of data acquisition(SCADA) systems. TCG120 may periodically send data to a remote server, which makes it suitable for use in client-server applications.

Programming - When you connect the controller to PC via USB, the TCG120 will be recognized as mass storage device. From this mass storage device you will start a small tool, which creates a virtual COM port and enables the communication with the unit (HTTP via USB). All settings can be made using your web browser.

TC Monitor Software

TC Monitor is easy to use Windows application for monitoring and control of TCG120 products. TC Monitor can collect and display data from controllers installed in different locations (sites). The collected data is stored in SQL database and can be displayed or exported in MS Excel format for further analysis. TC Monitor has a simple web interface, which enables easy and fast configuration. Monitored parameters can be 1-wire sensors, digital and analog inputs and relay outputs.

The free version of TC Monitor provides 10 credits, this means up to 10 different parameters can be monitored and logged. More Information >>


Downloads

User Manual >>

TC Monitor Manual >>

TC Monitor Download >>

TCConfig Software >>
