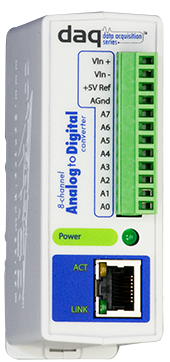

X-DAQ-8A5-I Analog Module

Zoom

Our Price: £384.00(£460.80 Inc. VAT)

–+

Notify me when this item is available

Availability:

Incoming, 7-10 days

The Analog Module provides an accurate way to remotely monitor analog signals over an IP network.

Using analog sensors (not provided), many real-world values such as position, water level, flow, voltage, current, etc., can be measured and viewed over an IP network using a web browser. Up to eight analog signals can be connected to the module.

The Analog Module has a built-in web server which allows the inputs to be monitored with a web browser, XML formatted text, or Modbus/TCP.

The Analog Module is fully configured in minutes using a web browser. No additional software is needed

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

Features;

•Connect up to eight analog signals
•No programming required
•Built-in web server
•Configurable control and status web page
•Email alerts
•Modbus/TCP support
•XML formatted status
•Password protected
•Selectable TCP ports
•12-pin removable terminal connector included
•Rugged, DIN rail or wall mount Lexan enclosure
•Wide power supply range ◦9-28VDC

Inputs: Analog: 8 (0-5VDC)
Outputs: N/A
Power Supply: 9-28VDC
