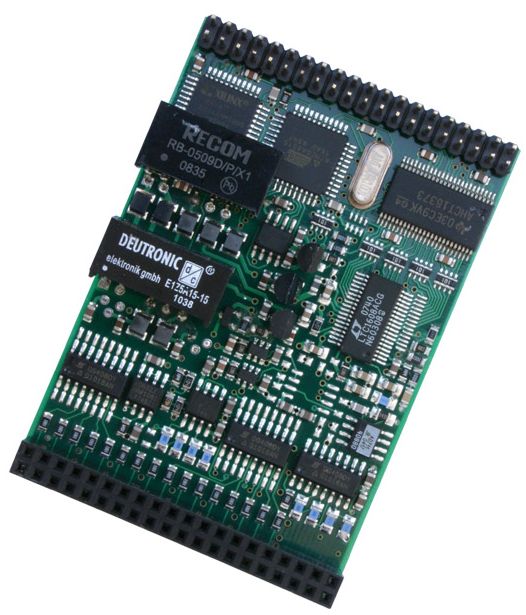

MAD16f - Analogue Input Module for PCI/PCIe cards

MAD16f - Analogue Input Module for PCI/PCIe cards
Our Price:  £349.00(£418.80 Inc. VAT)



Special order, 3-5 day despatch

  • A/D converter module
  • sampling rate 500kHz
  • 16 bit resolution
  • integrated RISC controller
  • 16 analogue inputs

User Manual >>

The module features 16 analogue inputs. They are available at the 37-pole D-Sub female connector of the PCI/PCIe card. Sampling is done with 16 bit resolution and max. 500kHz sampling rate per module.
To record analogue signals, four measuring ranges (±10V, ±5V, ±2V and ±1V) are provided. The range is defined for each channel separately. Changing the measuring range does not influence the maximum sampling rate.
The integrated RISC controller generates jitter-free sampling sequences.
