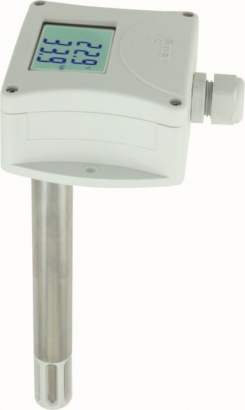

T3413D - Temperature and humidity duct mount transmitter with RS485 output

T3413D - Temperature and humidity duct mount transmitter with RS485 output
  Zoom
Our Price:  £220.00(£264.00 Inc. VAT)
+

Availability:



Incoming, 10-14 days

Humidity, temperature transmitter. Outdoor, indoor use. Duct mount.

Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy

INCLUDED IN DELIVERY:

  • T3413D
  • Instruction Manual
  • Traceable Calibration Certificate
  • FREE software TSensor for Configuring of the Transmitter

Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

TECHNICAL DATA

MEASURED VALUE

  • Temperature
  • Relative humidity
  • Counted values (dew point…)

TEMPERATURE SENSOR

  • Measuring range -30 to +125 °C
  • Accuracy ±0.4 °C
  • Resolution 0.1 °C

HUMIDITY SENSOR

  • Measuring range 0 to 100 % RH
  • Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
  • Resolution 0.1% RH

DEW POINT

  • Measuring range -60 to +80 °C
  • Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
  • Resolution 0.1 °C

GENERAL TECHNICAL DATA

  • Operating temperature -30 to +80 °C
  • Channels internal temperature and humidity sensor
  • Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
  • Output RS485
  • Range of humidity sensor temperature compensation all temperature range
  • Available temperature units degrees Celsius, degrees Fahrenheit
  • Communication protocol ModBus RTU, ARION, Advantech ADAM
  • Power 9-30 Vdc
  • Protection class IP65 electronics; IP40 sensors
  • Dimensions 88,5 x 95 x 195 mm; stem length 150 mm
  • Weight approx. 150 g
  • Warranty 3 years
