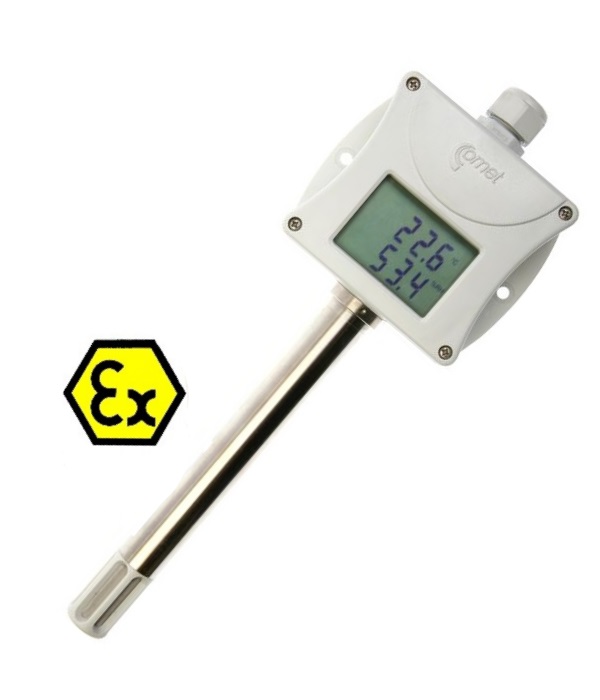

T3113Ex Intrinsically Safe Temperature and Humidity Duct mount probe with 4-20mA output

T3113Ex Intrinsically Safe Temperature and Humidity Duct mount probe with 4-20mA output
  Zoom
Our Price:  £303.00(£363.60 Inc. VAT)
+

Temperature Inputs:  1
Humidity Inputs:  1

Availability:



Incoming, 10-14 days

PP4  Flat circular flange for Comet Duct SensorsPP4 Flat circular flange for Comet Duct Sensors

The T3113Ex is an intrinsically safe temperature and humidity transmitter with an isolated 4-20mA output for use in potentially explosive environments. ATEX certified for outdoor or indoor use. Duct Mount


Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

  • Measured Value: Relative Humidity + Temperature
  • Construction Type: Duct Mount (150mm)
  • Design: Industrial
  • Temperature Measuring Range: -30 to +80°C
  • Relative humidity range: 0 to 100%
  • Accuracy of temperature output:    ±0.6°C
  • Accuracy of humidity: ±3.0% relative humidity from 5 to 95% at 23°C
  • Temperature operating range: -30 to +80°C
  • ATEX certification for use in potentially explosive environments.
  • IP protection: IP65 electronics, IP40 sensors
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 220g


Downloads

User Manual >>

ATEX Certificate >>
