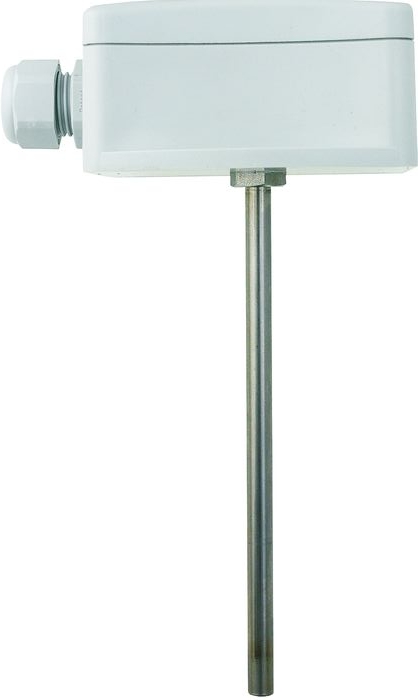

P0122 Duct Mount Temperature Sensor with 4-20mA output

Zoom

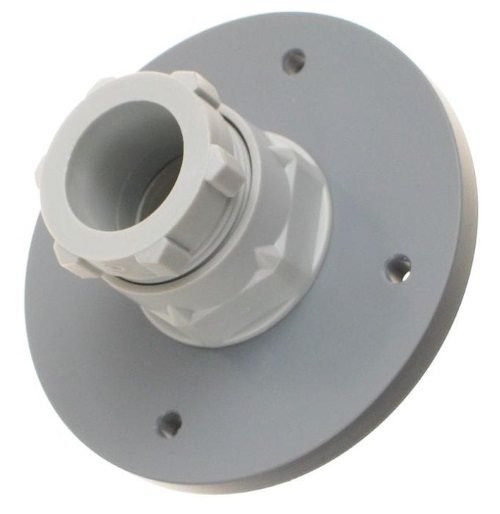

Our Price:  £81.00(£97.20 Inc. VAT) –+ Add to Basket Temperature Inputs:  1 Availability:      Special order, 5-10 day despatch PP4 Flat circular flange for Comet Duct Sensors  + £6.00 Tweet The P0122 is a low-cost duct mount temperature transmitter with an isolated 4-20m output and wide measurement range of -30 to +80°C

• Output: 4-20mA
• Design: Industrial Duct Mount
• Temperature Measuring Range:-30 to +80°C
• Accuracy of temperature output:    ±0.4°C
• Temperature operating range: -30 to +80°C
• IP protection: IP65
• Power: 9-30Vdc, current consumption approximately 6mA
• Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
• Weight: approximately 220g

Downloads

User Manual >>
